McIntosh MPC500 Power Controller

Features

• AC power line surge protection
• Low voltage secondary surge protection
• Connect up to 8 components

Inconsistency in power quality can cause costly damage to electronic devices. Protect your home audio investment with the MPC500 Power Controller. Featuring cascaded surge protection, the MPC500 delivers AC power line surge protection, such as from a lightning strike, as well as protecting low voltage devices against secondary surges and spikes that can occur after the initial event.

AC power line protection is accomplished with the use of a thermally protected metal-oxide varistor (TPMOV) – which is far safer than a traditional MOV – that provides you with Line to Neutral protection. For secondary surge events, the MPC500 provides protection for your ethernet, coaxial, and other low voltage devices via Gas Discharge Tubes (GDT), Positive Temperature Coefficient (PTC) thermistors and Transient Voltage Suppression (TVS) components. Also included in the MPC500 is electromagnetic interference (EMI) filtering of the AC line and over/under voltage protection, which will switch off the rear receptacles to keep your connected devices safe from trying to operate at undesired voltage levels.

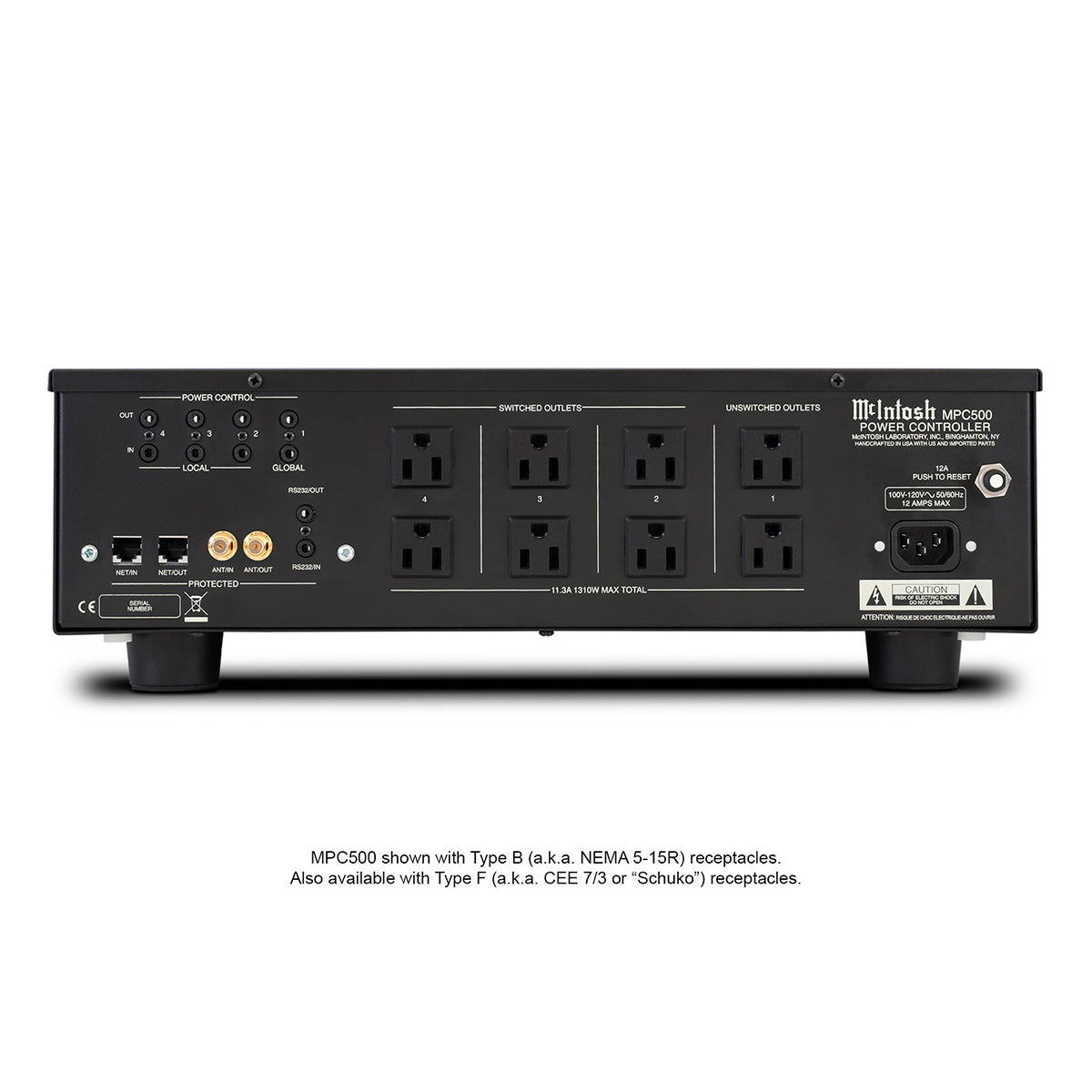

The MPC500 includes either 8 Type B¹ (a.k.a. NEMA 5-15R) or 4 Type F¹ (a.k.a. CEE 7/3 or “Schuko”) receptacles; only the appropriate version is available in each individual country to ensure compatibility with local power systems. Control of each receptacle can be configured to your preferences via the rear panel Power Control ports or through the setup menus on the front panel.

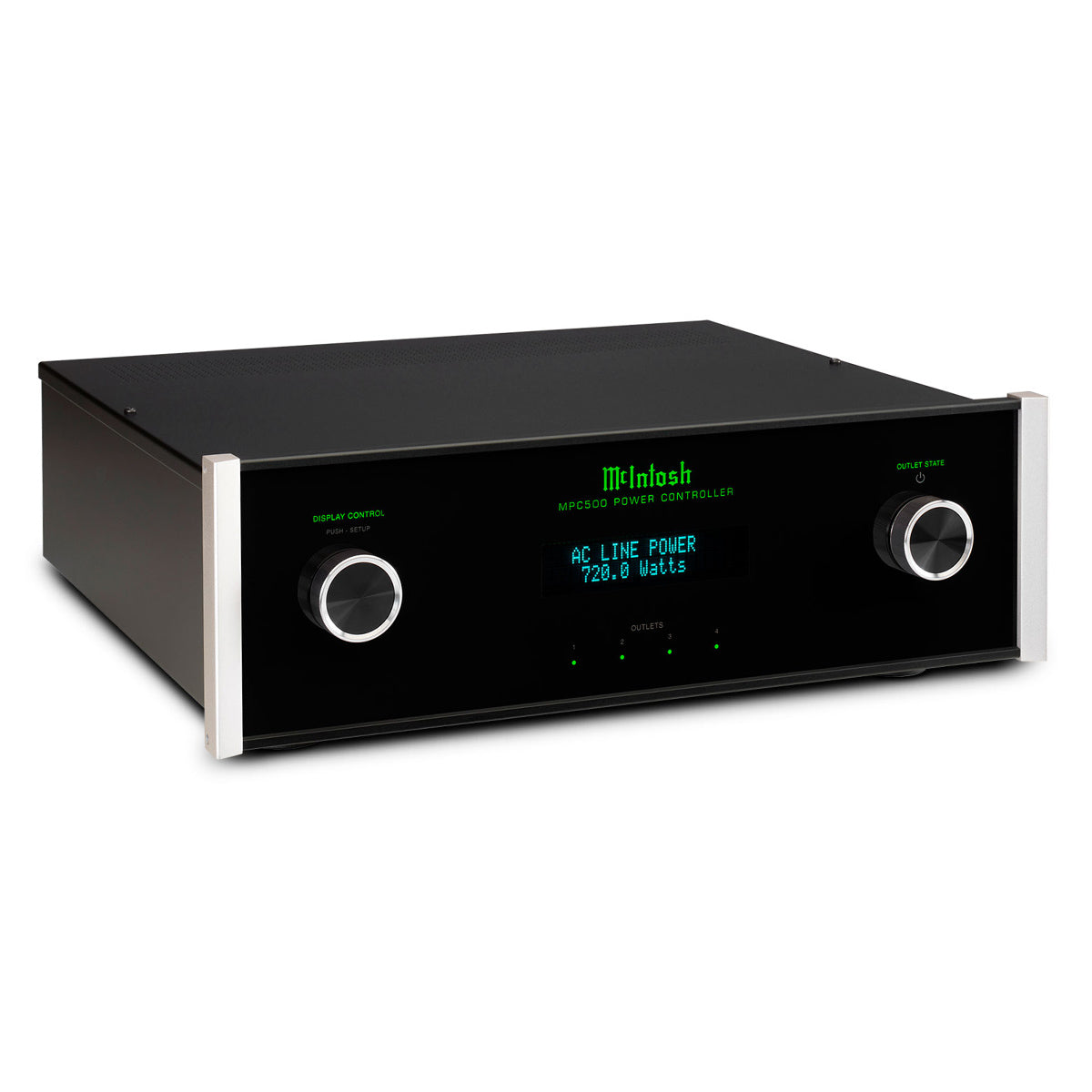

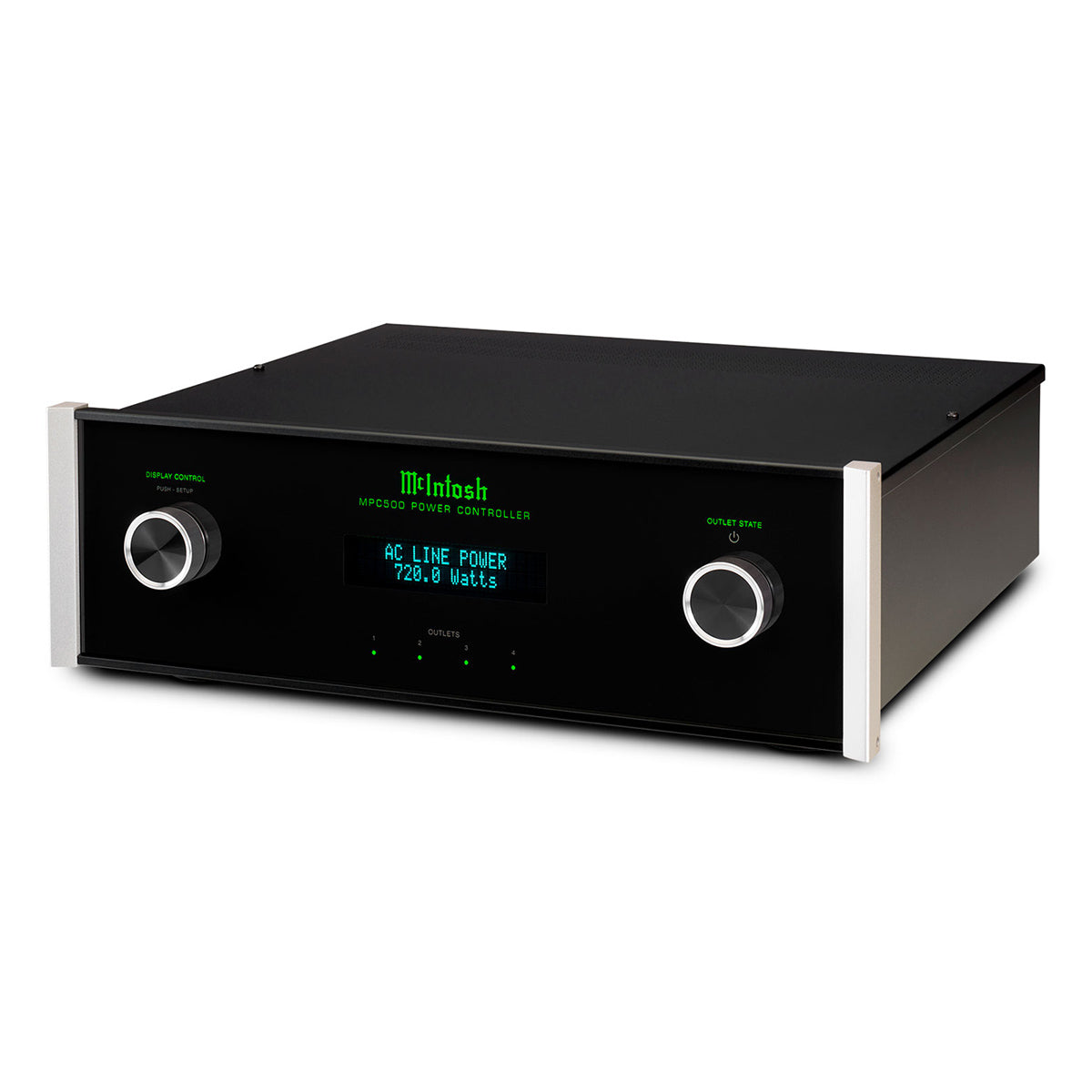

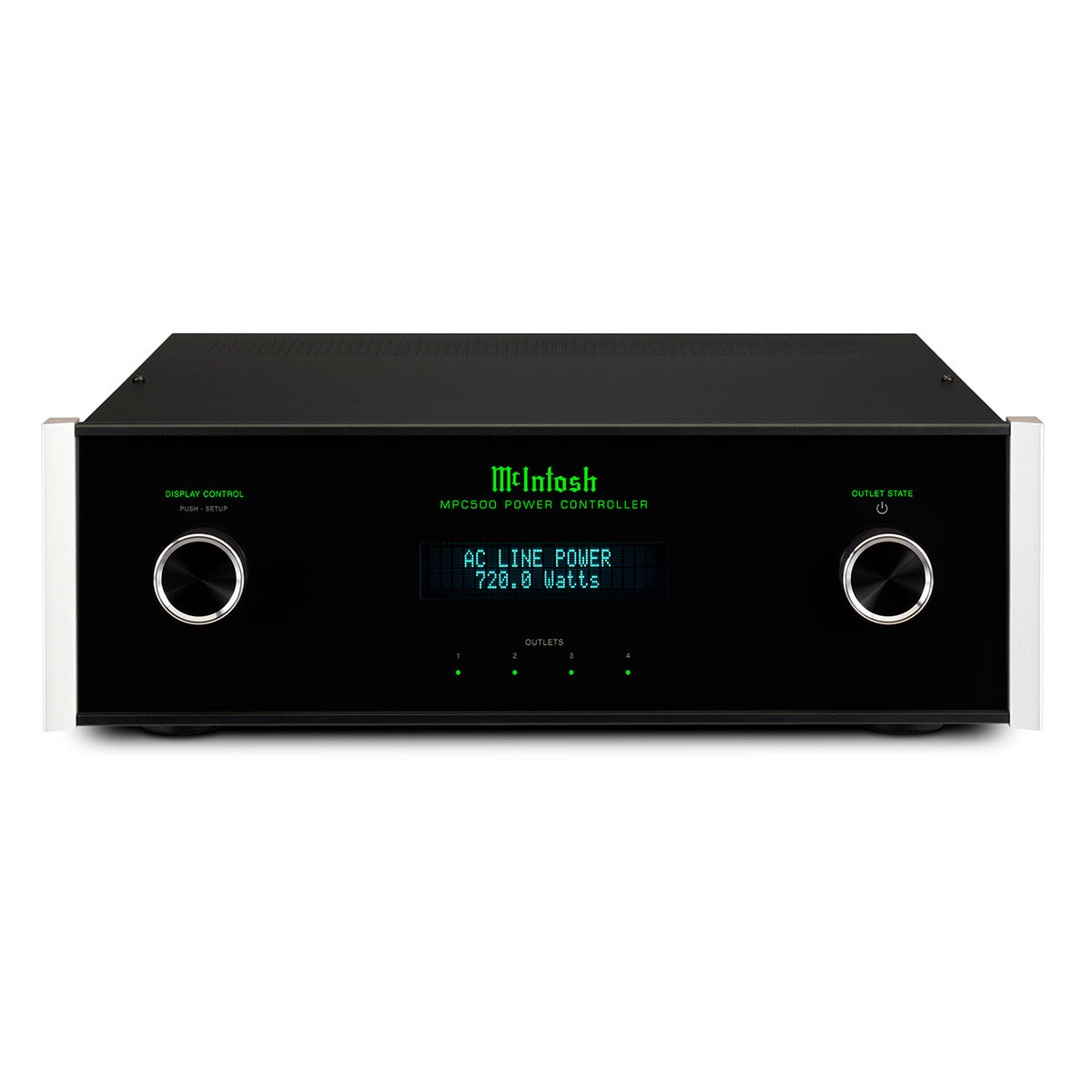

The front panel display can list input voltage, the amount of current being drawn through the receptacles, or total (apparent) power. Regardless of receptacle type, all versions of the MPC500 feature the timeless McIntosh black glass front panel, illuminated logo, control knobs, and aluminum end caps. Contact your local dealer to learn more.

The MPC1500 comes with either 6 medical grade Type B¹ (a.k.a. NEMA 5-15R) duplex receptacles, or 6 high quality Type F¹ (a.k.a. CEE 7/3 or “Schuko”) single receptacles. Only the appropriate version is available in each individual country to ensure compatibility with local power systems. Two of the receptacles are always active when the MPC1500 is plugged in. Control of the other 4 receptacles can be configured to your preferences via the rear panel Power Control switches. LED indicators on both the front and back show the current in-use state of each receptacle.

Our blue Watt meters have been repurposed to show the real time incoming voltage and the actual current draw of the connected devices. The meters will be scaled to the correct amperage and voltage based on the local country (e.g. the voltage meter will be scaled to 250 for countries that use the Type F receptacle). Regardless if the unit has Type B or Type F receptacles, all versions of the MPC1500 feature the timeless McIntosh black glass front panel with blue meters, an illuminated logo, control knobs, and aluminum end caps. Contact your local dealer to learn more.
