Ray Tubes SELECT 12AT7
Regular price
$88.00
Regular price
DESCRIPTION

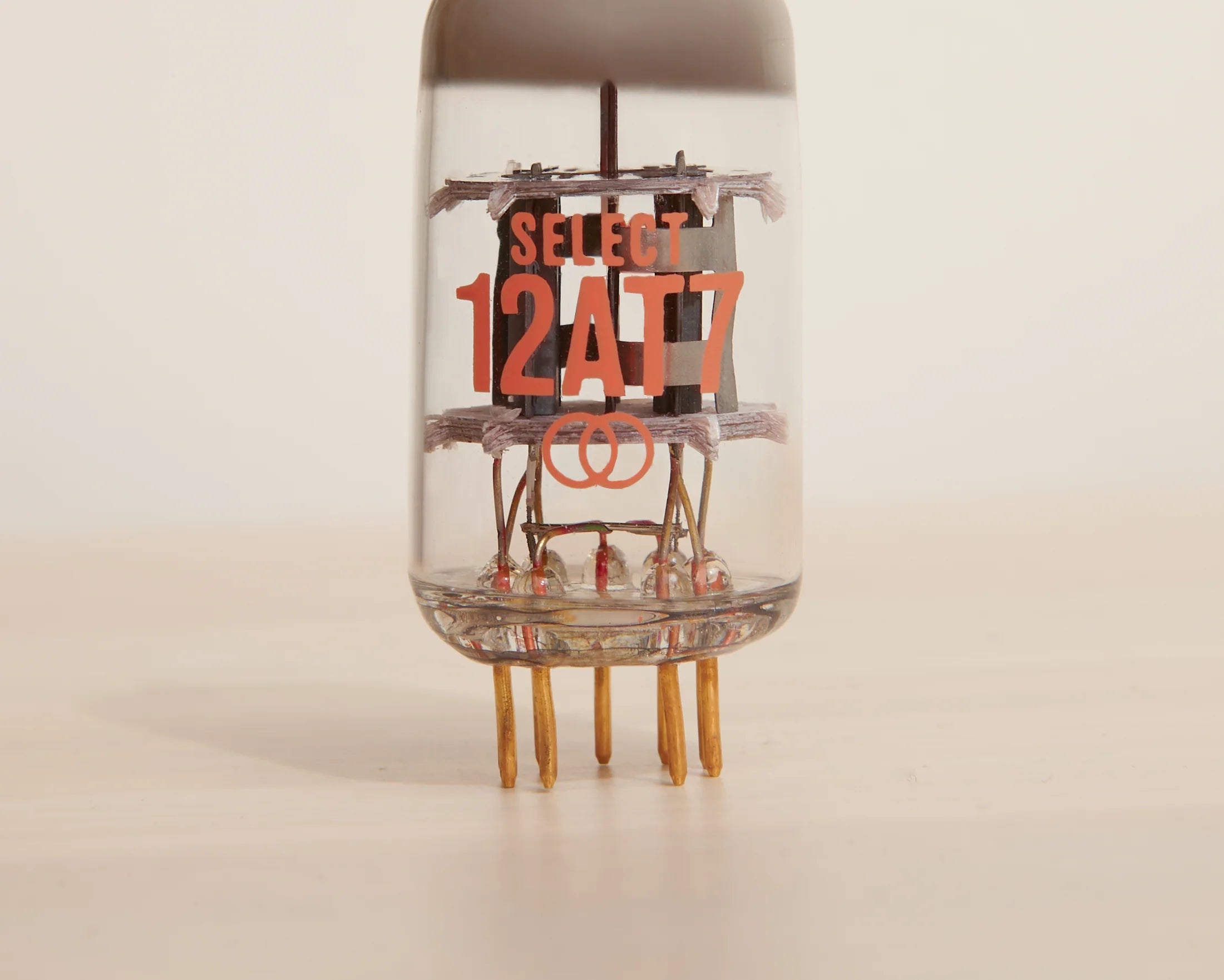

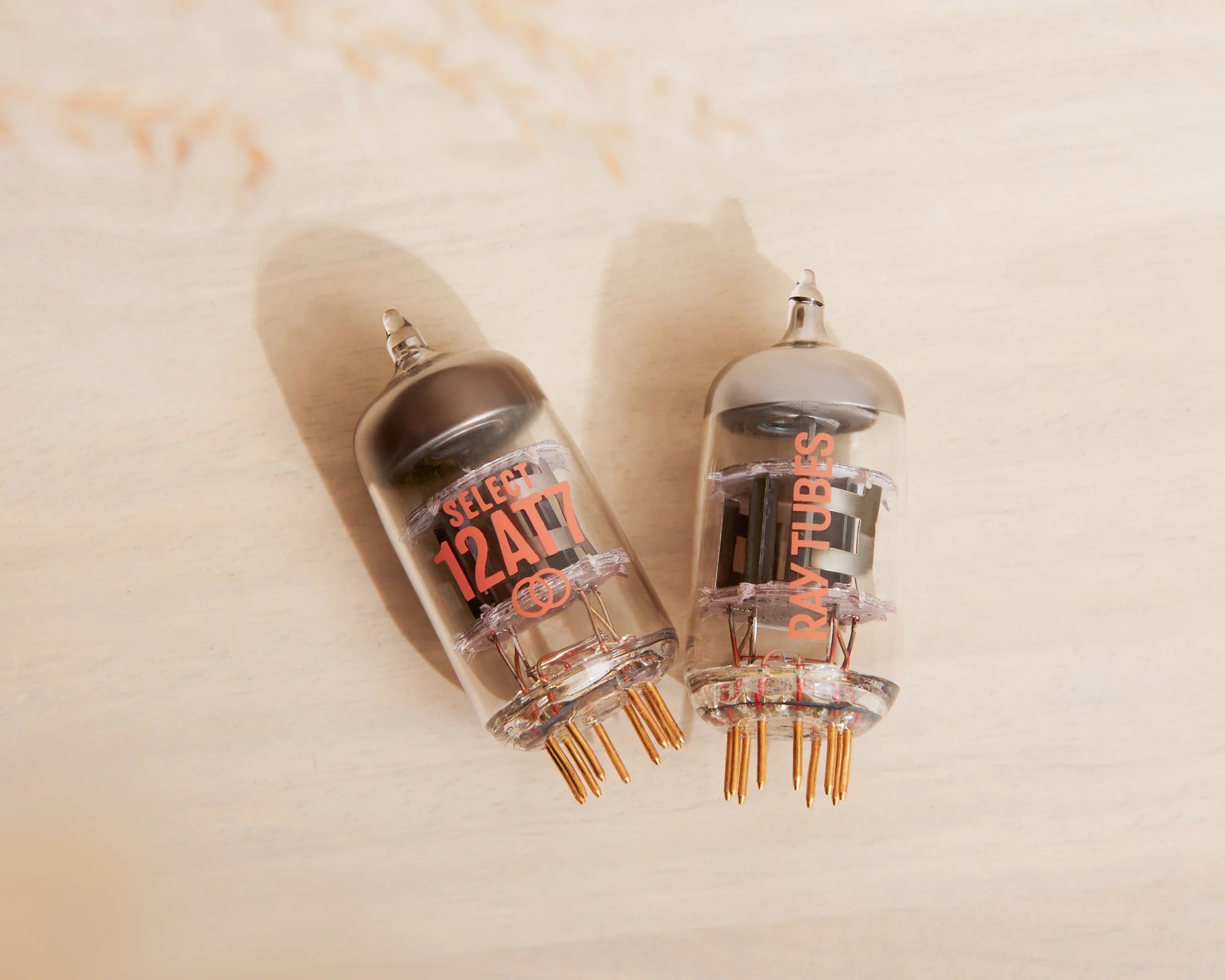

The Ray Tubes SELECT 12AT7 is a hand-selected vacuum tube offering enhanced performance for high-resolution audio systems. Part of the SELECT Collection, this tube features gold pins for better conduction and durability, with only the best tubes from each batch earning the SELECT standard. The 12AT7 is ideal for use as a driver or phase inverter in push-pull audio circuits and delivers a balanced, detailed sound with crisp midrange and articulate high frequencies.
Technical Specifications
- Tube Type: 12AT7 / ECC81 / 6201 / CV4024

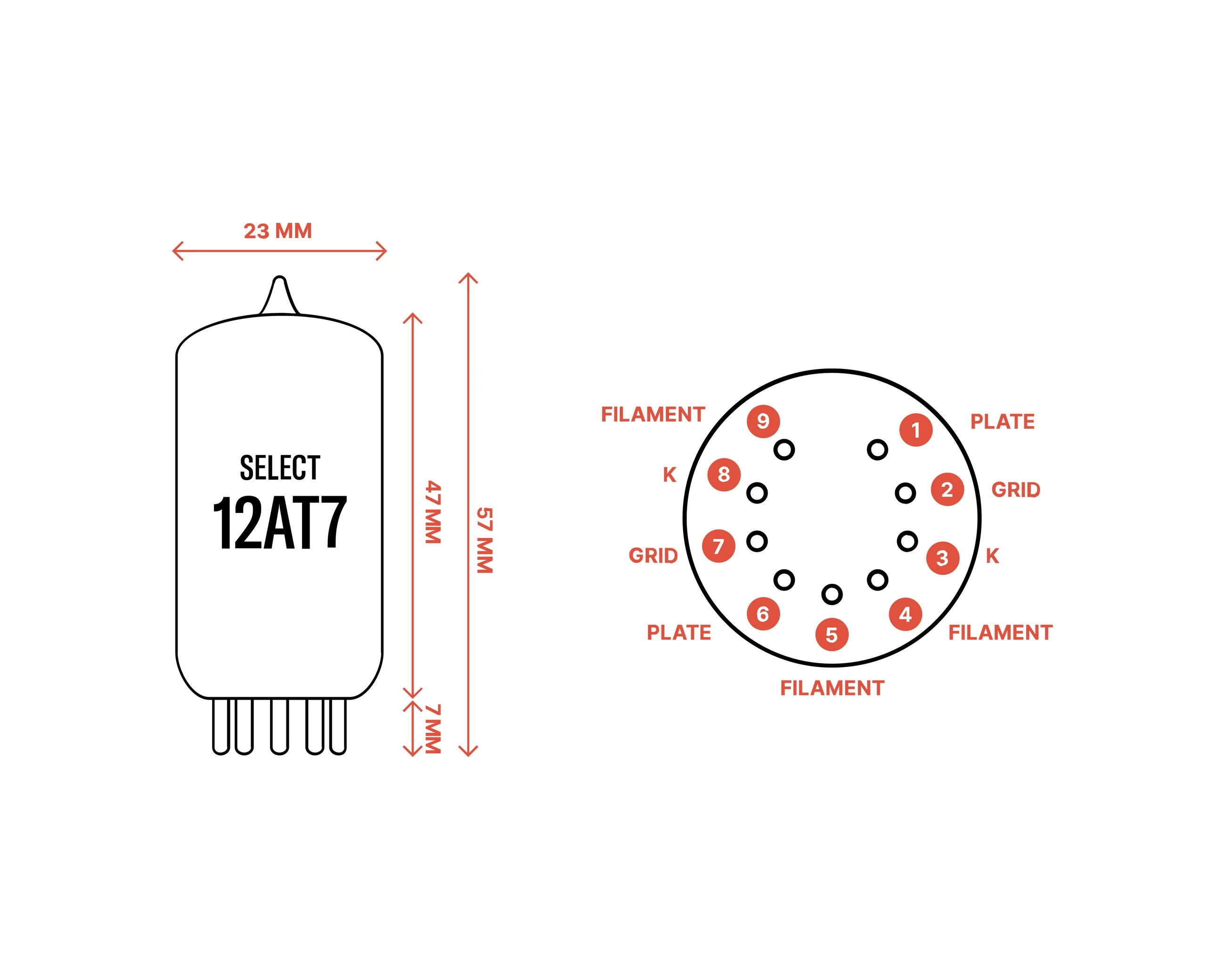

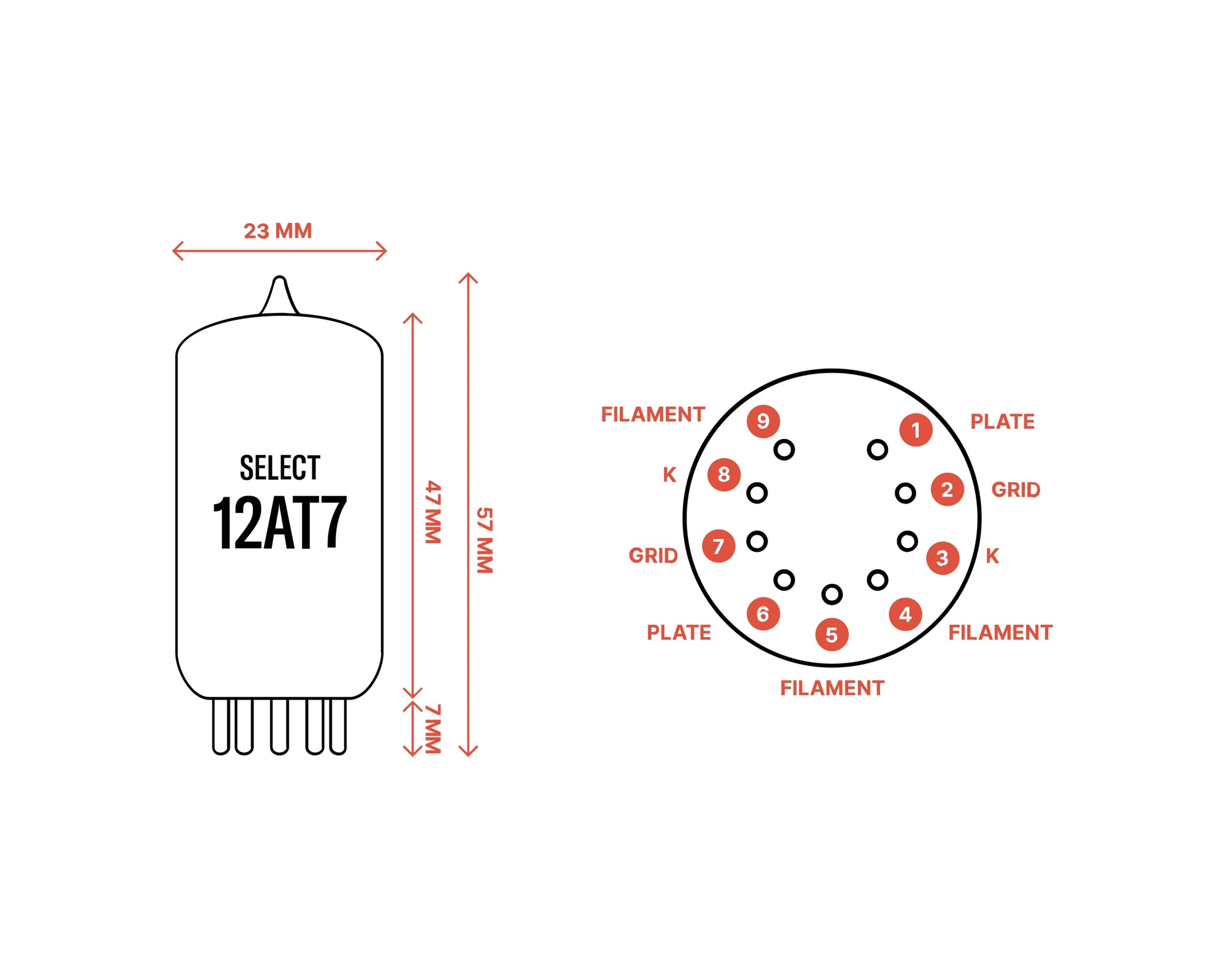

- Socket: 9-pin
- Max Anode Dissipation Power: 2.75 W
- Max Anode Voltage: 300 V
- Heater Voltage: 6.3 V
- Heater Current: 0.3 A
- Transconductance: 2.2 mA/V
- Amplification Factor: 17
- Internal Resistance: 7.7 kΩ
Includes user handbook, certificate of authenticity, and warranty.
