Ray Tubes SELECT 6SN7
Regular price
$173.00
Regular price
DESCRIPTION

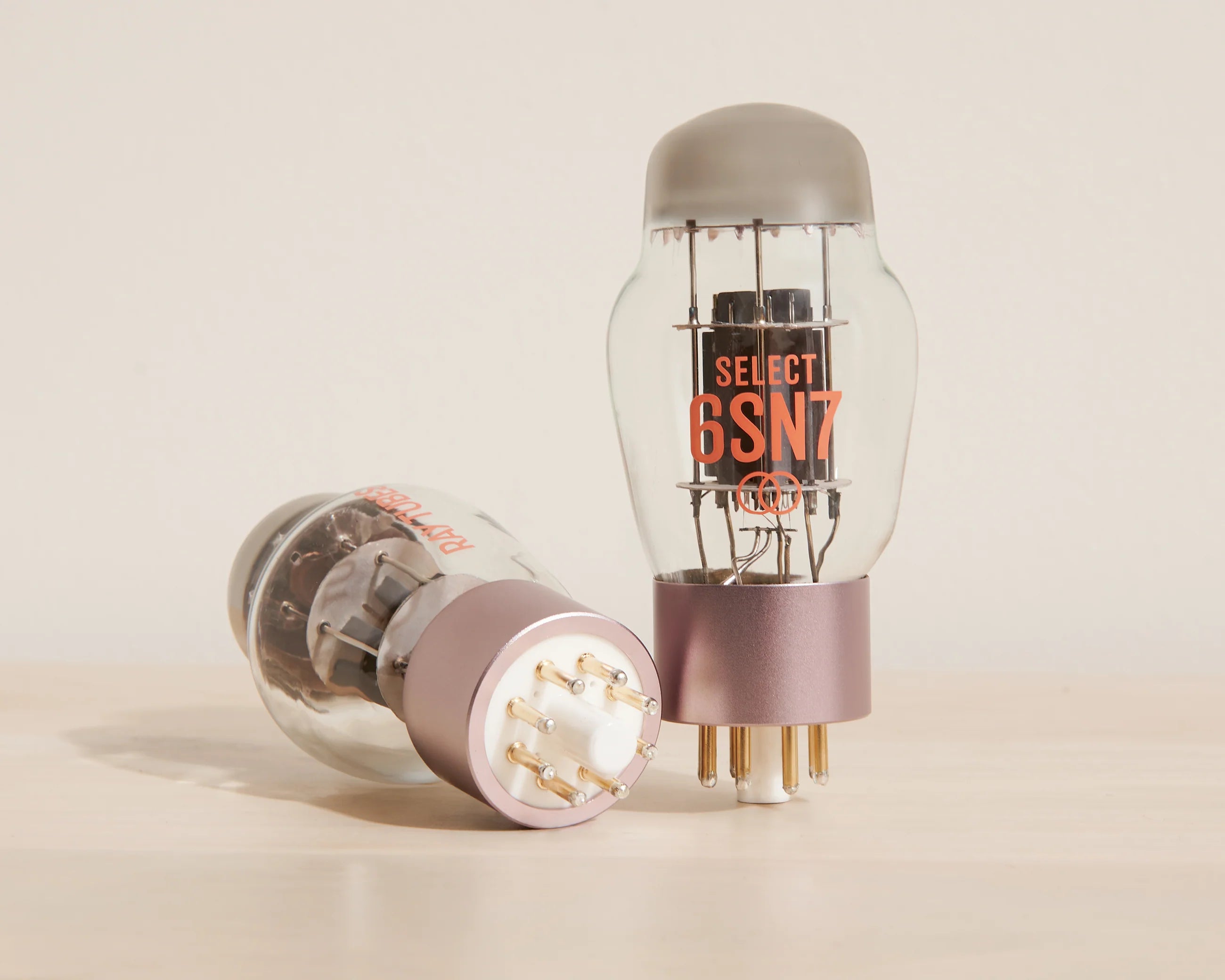

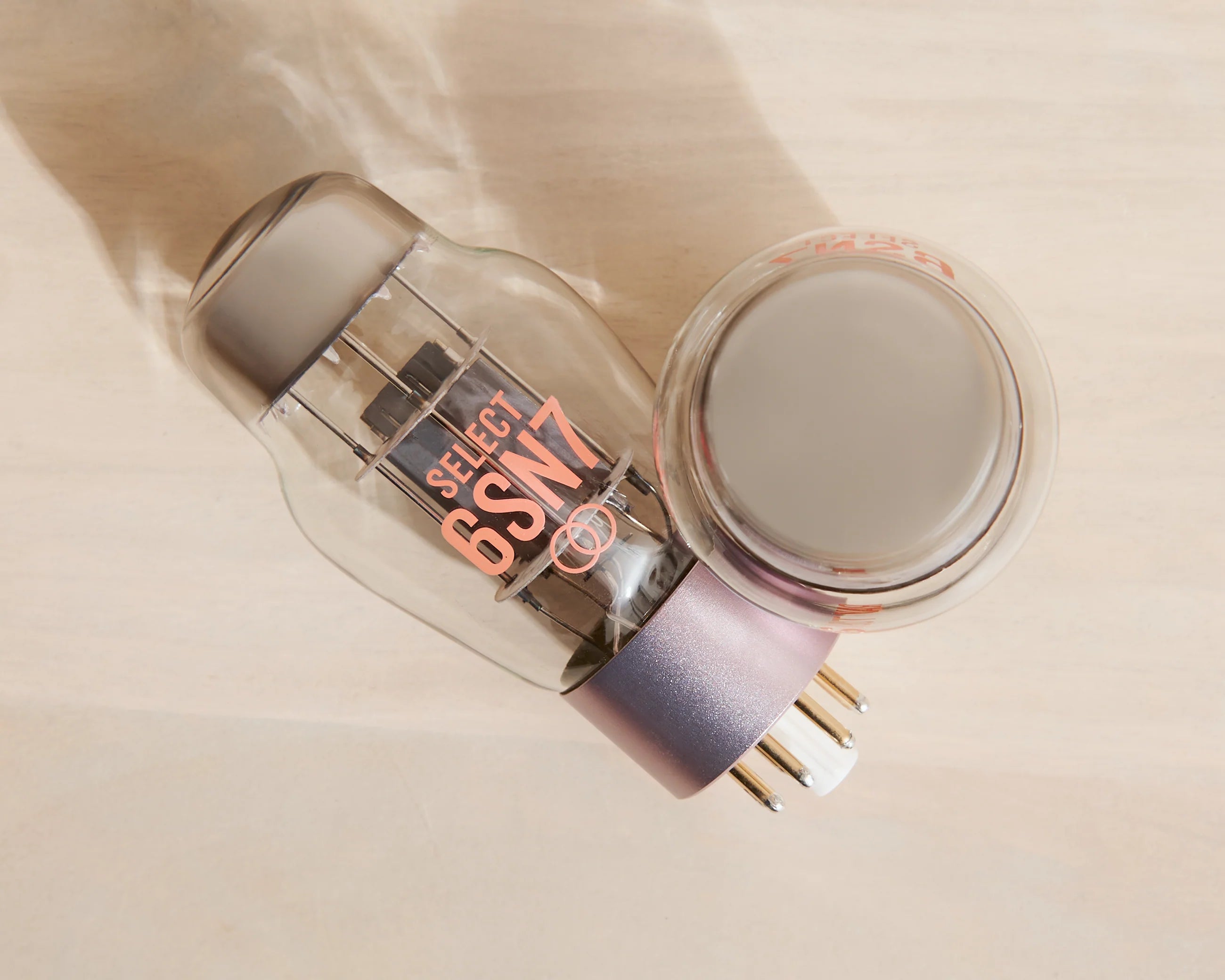

The Ray Tubes SELECT 6SN7 is a premium, hand-selected vacuum tube designed for high-performance audio systems. As part of the Ray Tubes SELECT Collection, each tube is tested to stricter standards than standard production, with fewer than 5% meeting SELECT quality criteria.
Featuring gold pins for improved conductivity and corrosion resistance, the SELECT 6SN7 is a dual triode tube commonly used in driver stages of power amplifiers and other audio circuits. It delivers a rich, detailed presentation with a wide soundstage and excellent dynamic range.
Sound Characteristics
- Rich, detailed sound with a wide soundstage
- Solid, deep bass with strong dynamics
- Warm, natural midrange with detailed texture
- Clear, transparent treble without harshness
- Excellent imaging and separation
Technical Specifications
- Tube Type: 6SN7

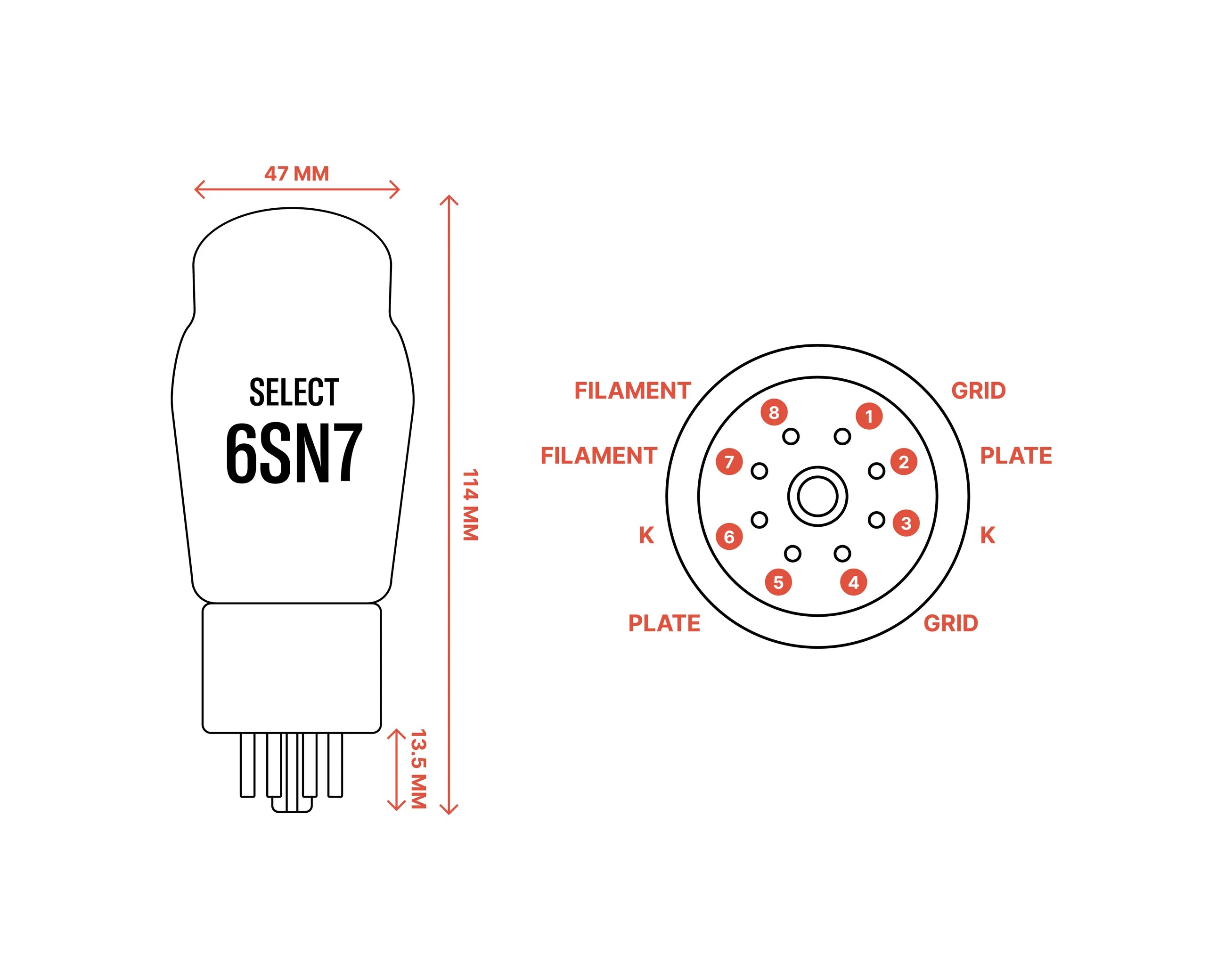

- Socket: 8-pin
- Max Anode Dissipation: 5 W
- Max Anode Voltage: 450 V
- Max Grid Voltage: ~8 V
- Heater Voltage: 6.3 V
- Heater Current: 0.6 A
- Transconductance: 2.6 mA/V
- Amplification Factor: 20
- Internal Resistance: 7.7 kΩ
Includes user handbook, certificate of authenticity, and warranty.
