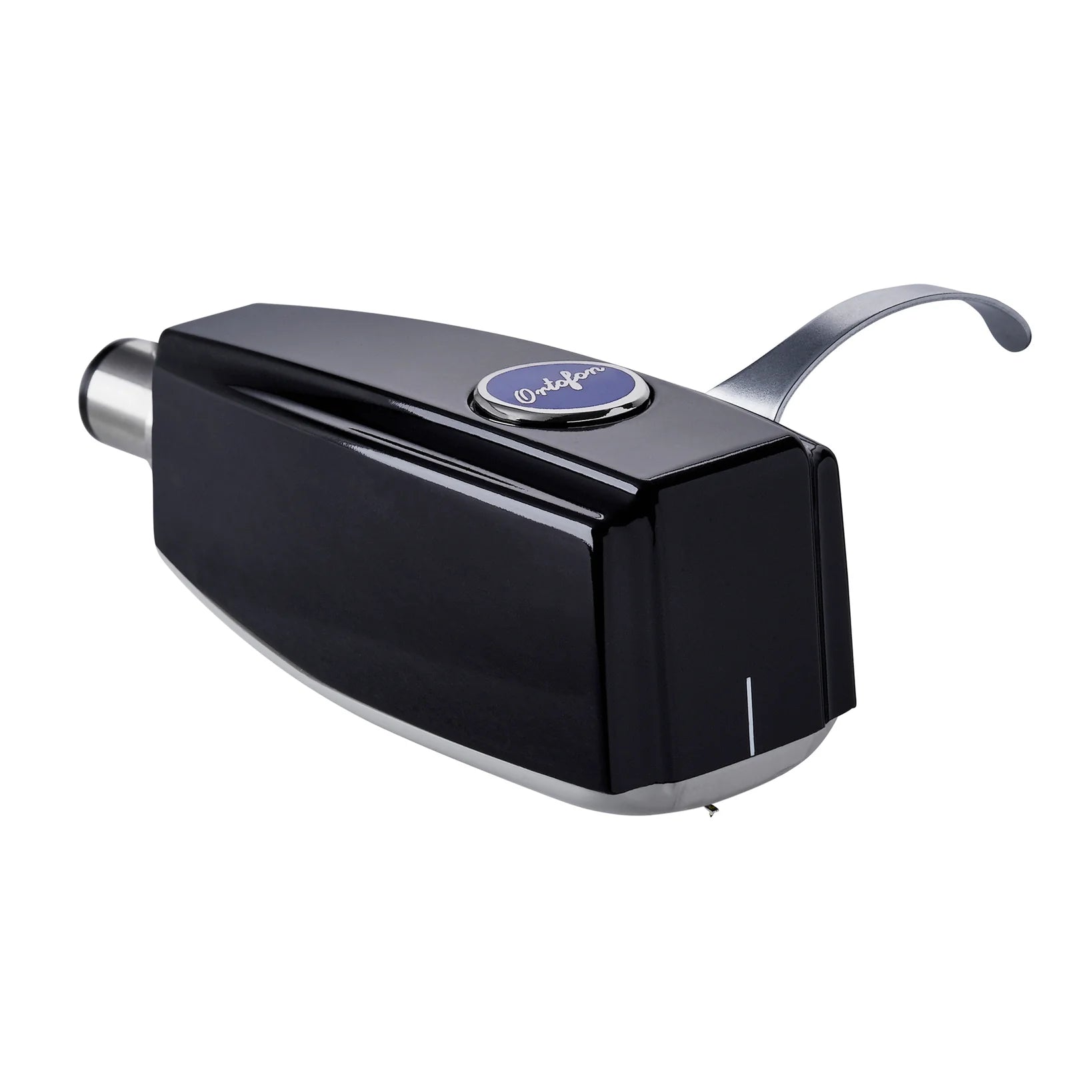

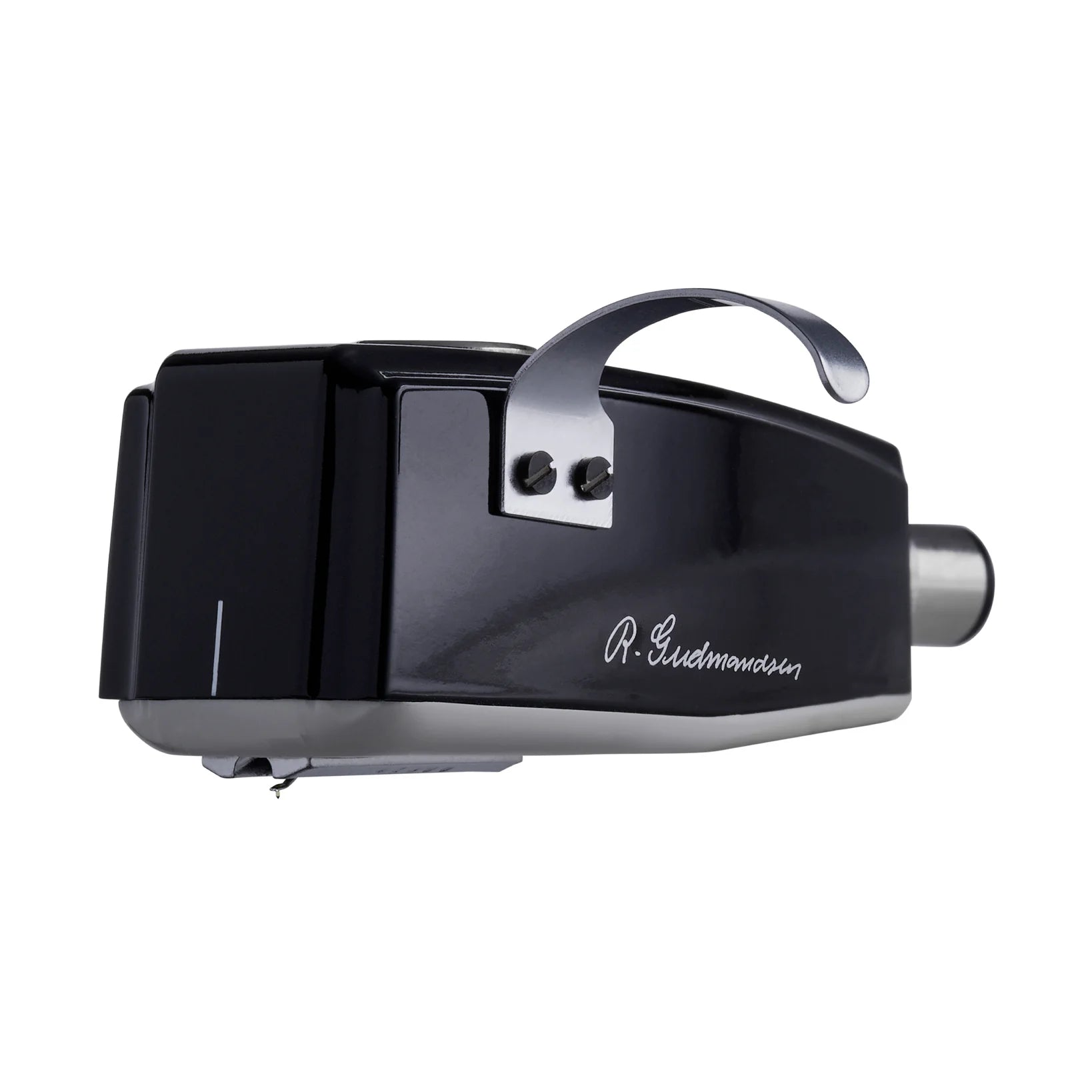

Ortofon SPU Meister Silver G MKII Phono Cartridge
DESCRIPTION
The masterpiece of Mr. Robert Gudmandsen, the SPU Meister Silver was introduced in 1996 as a technological improvement of great importance. Ortofon has succeeded in having the purest silver wire ever produced for the coil winding process.
Technological improvement of great importance
The SPU Meister Silver G MkII has been improved on coil winding material, stylus, and magnet. The cartridge has been outfitted with high purity multi-conductor 6-nines Silver wire (of a purity of 99.9999 %) for a more open and revealing high-end presentation.
The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail. The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.
Technical Specifications
- Channel balance: 1 dB (at 1KHz)
- Output Voltage: 0.3 mV (at 1KHz, 5cm/sec.)
- Channel Separation: 20 dB (at 1KHz)
- Frequency response: 20 - 20‘000Hz ( 2/-1 dB)
- Tracking ability at 315 Hz: 70 µm
- Compliance, dynamic, lateral: 8µm/mN
- Stylus type: Nude Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 3.0-5.0 g (30-50 mN)
- Tracking force, recommended: 3.5 g (35 mN)
- Tracking angle:
- Internal impedance, DC resistance: 3 ohm
- Recommended load impedance: 10 ohm
-
Coil wire material: Silver, 6-nines
- Cartridge body material: Ground wood and resin composite
- Cartridge color: Shiny black
- Cartridge Weight: 28g
