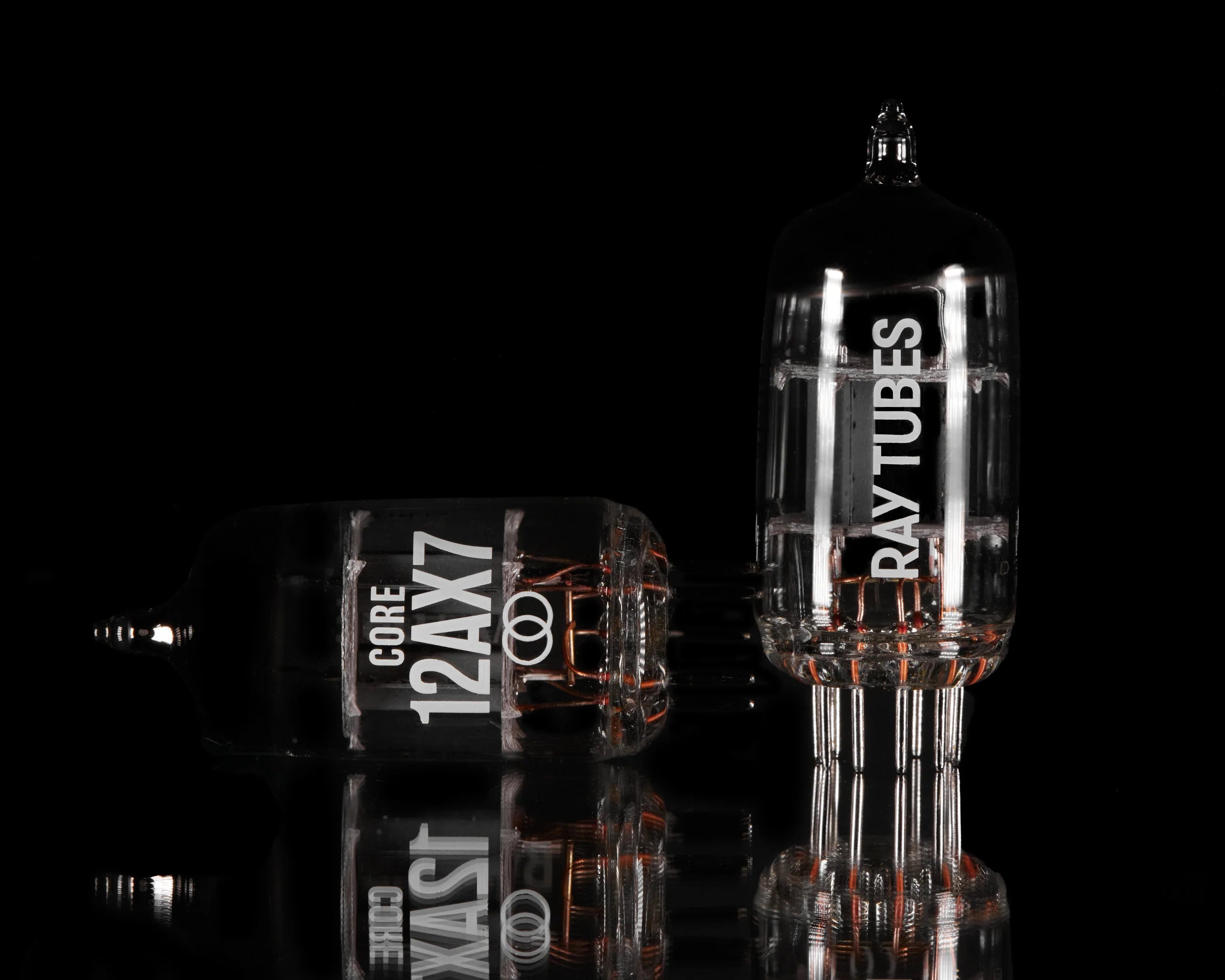

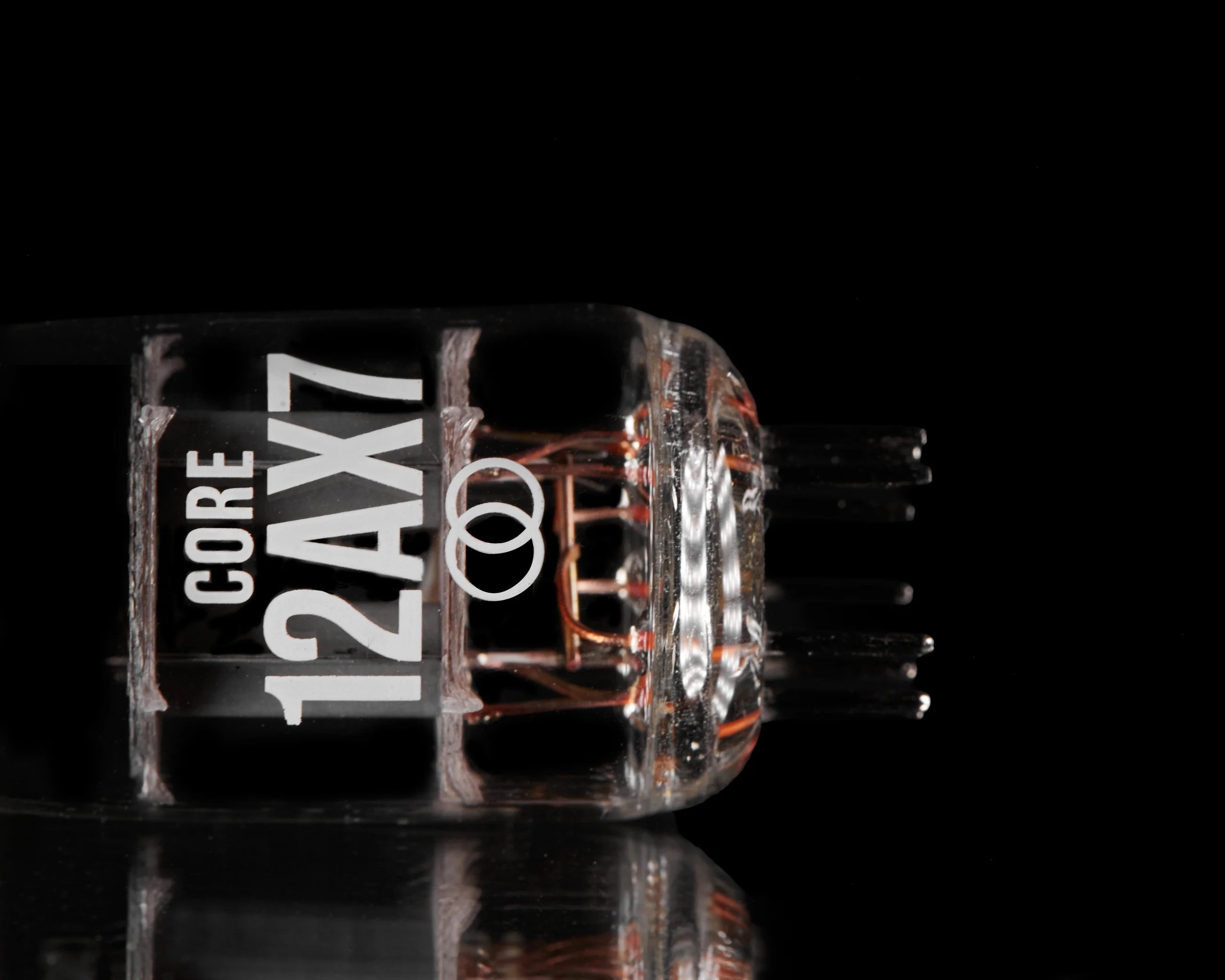

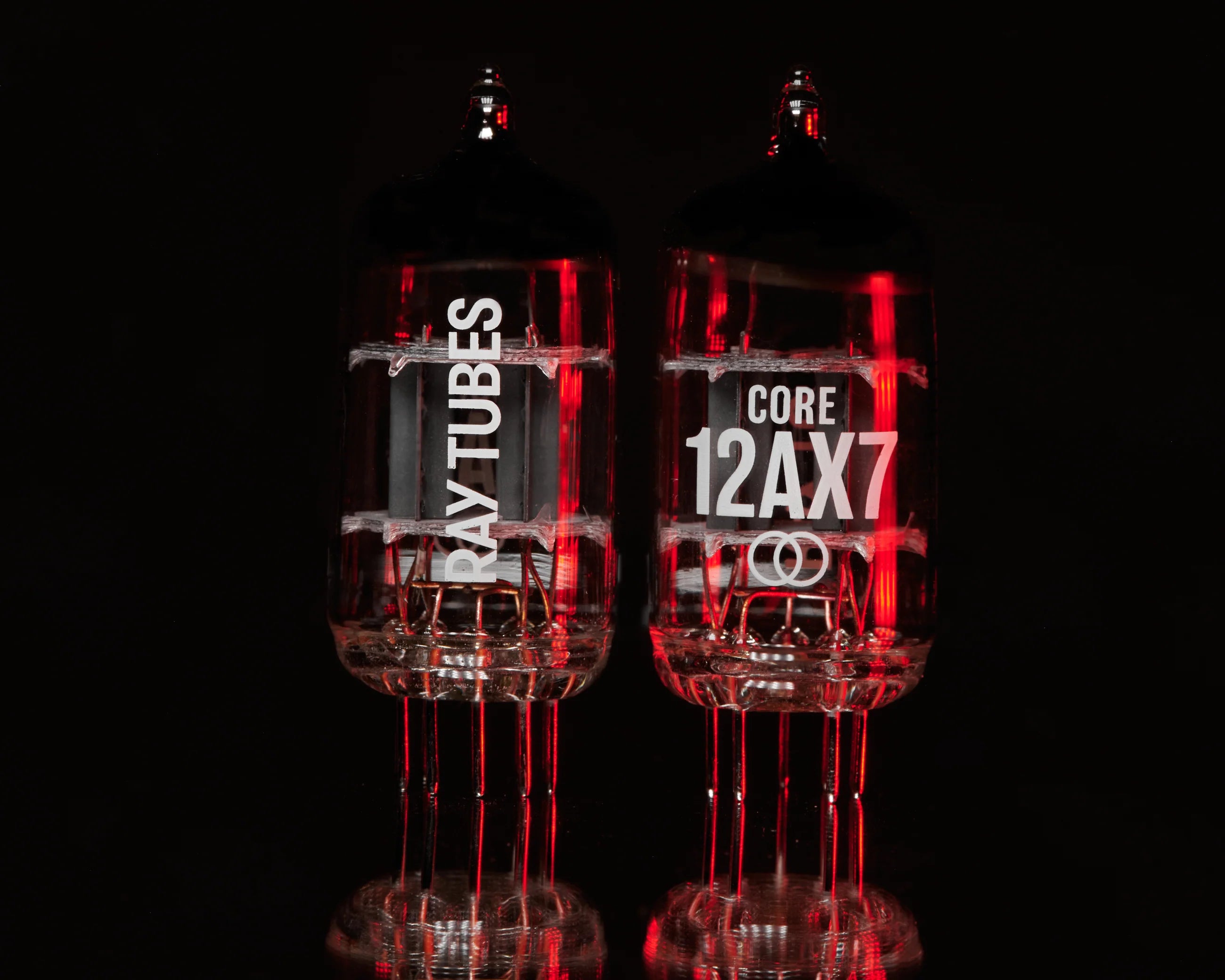

Ray Tubes CORE 12AX7
Regular price
$66.00
Regular price
DESCRIPTION
The Ray Tubes CORE 12AX7 offers dependable audio performance with modern production and meticulous selection processes that ensure consistent quality. Hand selected and tested, this tube avoids the variability of old stock tubes and provides reliable service in your system.
The 12AX7 is a classic small-signal dual triode commonly found in the pre-amp stage of tube amplifiers, known for its clear and natural sound profile with smooth treble and detailed midrange.

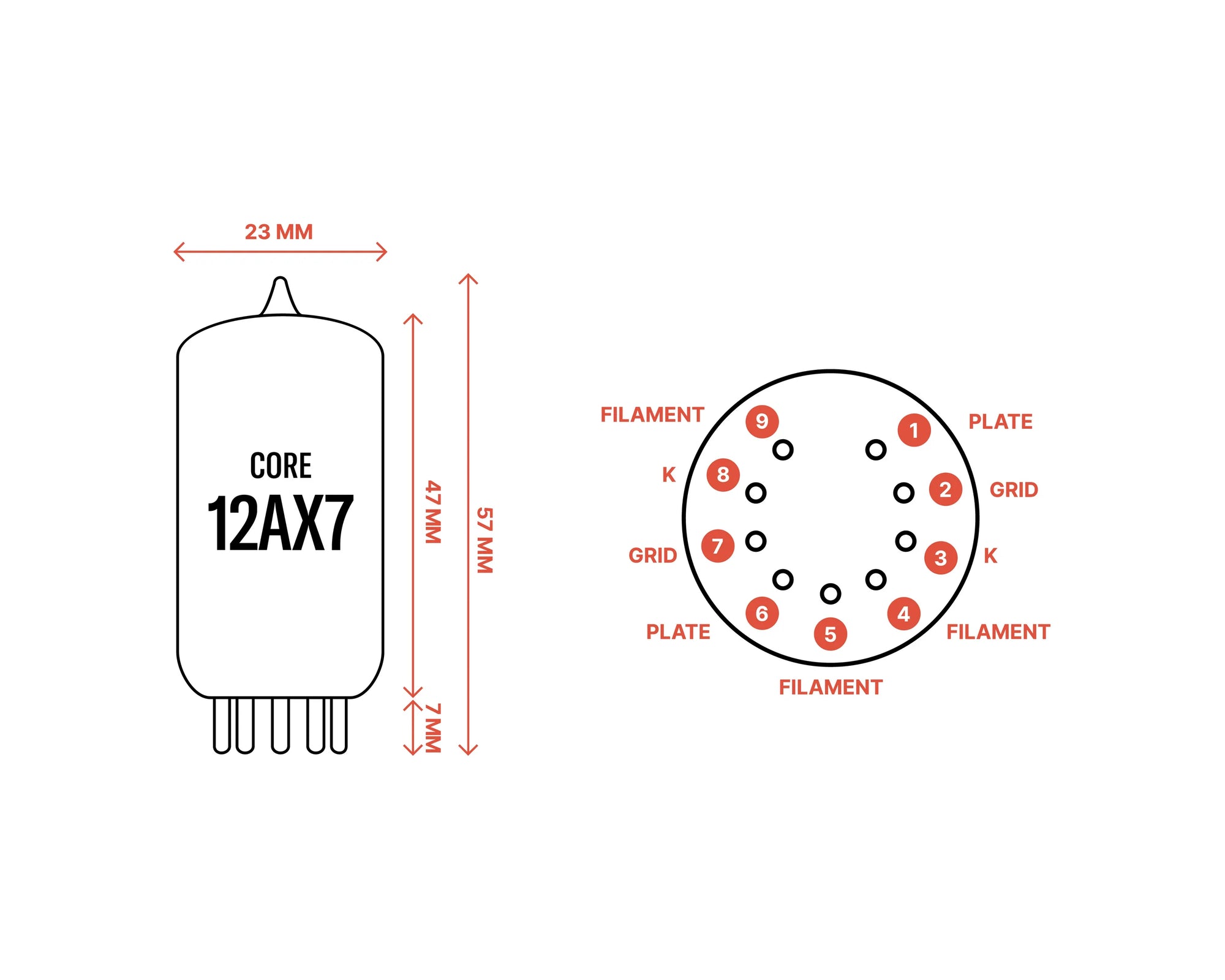

Technical Specifications:
- Tube Type: 12AX7 / ECC83 / CV4004
- Tube Socket: 9-pin
- Max Anode Dissipation Power: 1 W
- Max Anode Voltage: 300 V
- Heater Voltage: 6.3 V
- Heater Current: 0.3 A
- Transconductance: 1.6 mA/V
- Amplification Factor: 100
- Internal Resistance: 62.5 kΩ
Backed by the Ray Tubes One Year Warranty
