Ray Tubes RESERVE 6SN7
Regular price
$552.00
Regular price
DESCRIPTION
The Ray Tubes RESERVE 6SN7 is a high-end vacuum tube crafted for audiophiles who demand the very best. Part of the Ray Tubes RESERVE Collection, this tube is the result of decades of experience, bespoke design, small-batch production, and meticulous selection. Each tube features gold-plated pins and monocrystalline carbon Magic Coating, and only fewer than 5 % of production meets RESERVE standards. Designed specifically for hi-fi audio applications, the dual triode 6SN7 delivers a warm, natural sound with smooth treble and rich, expressive midrange.
Technical Specifications:
- Tube Type: 6SN7

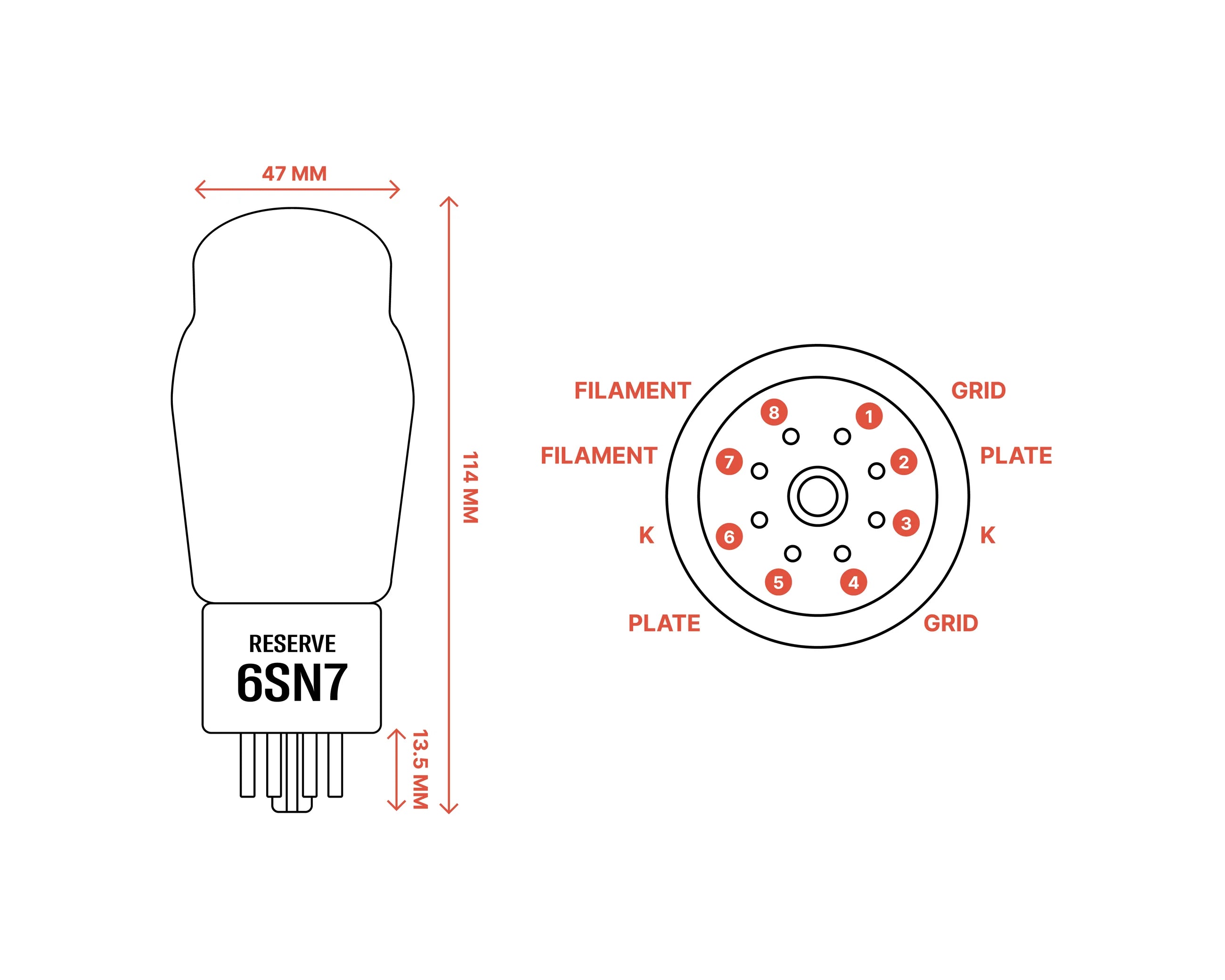

- Tube Socket: 8-pin
- Max Anode Dissipation Power: 5 W
- Max Anode Voltage: 450 V
- Max Grid Voltage: ~8 V
- Heater Voltage: 6.3 V
- Heater Current: 0.6 A
- Transconductance: 2.6 mA/V
- Amplification Factor: 20
- Internal Resistance: 7.7 kΩ
Backed by the Ray Tubes One Year Warranty
