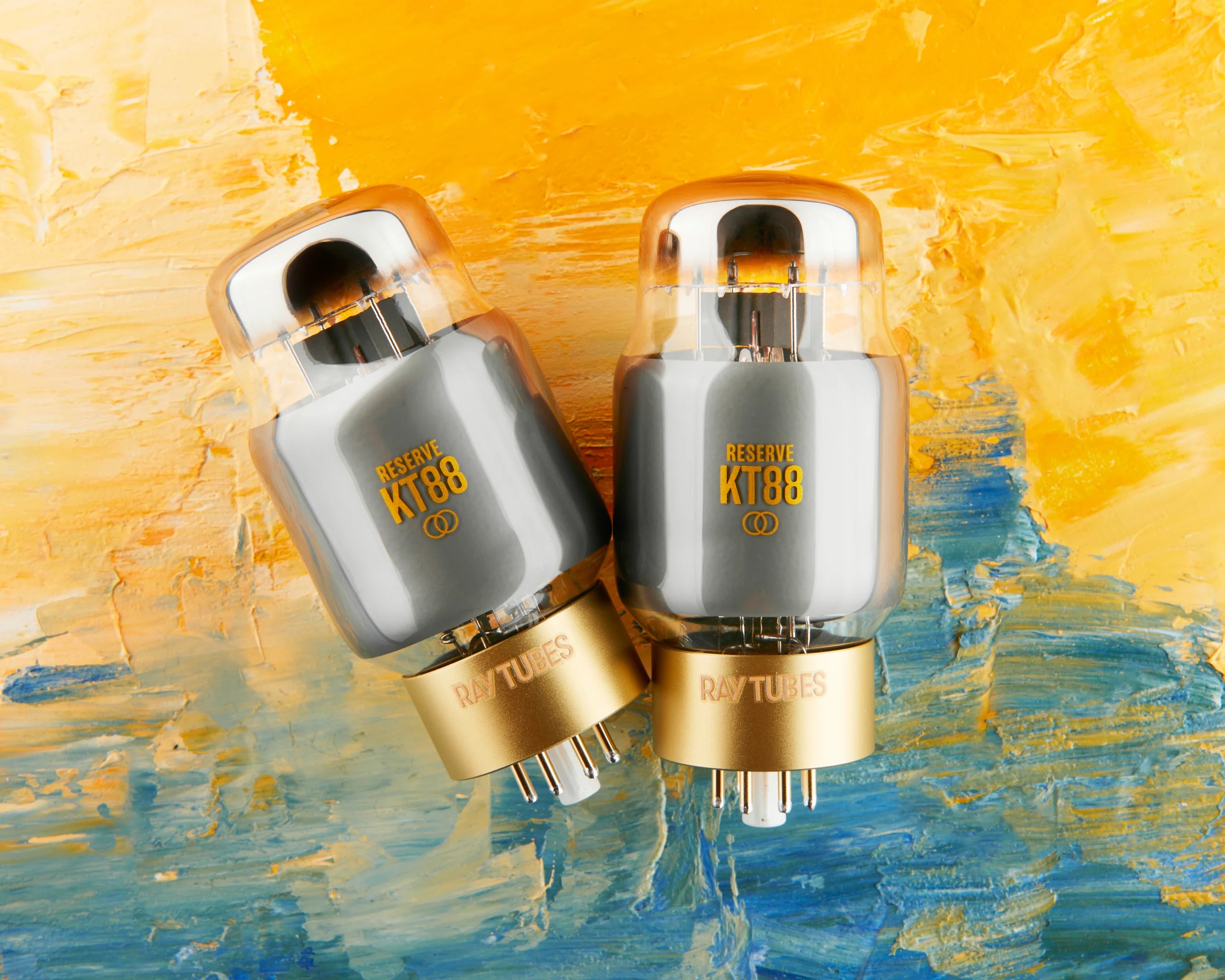

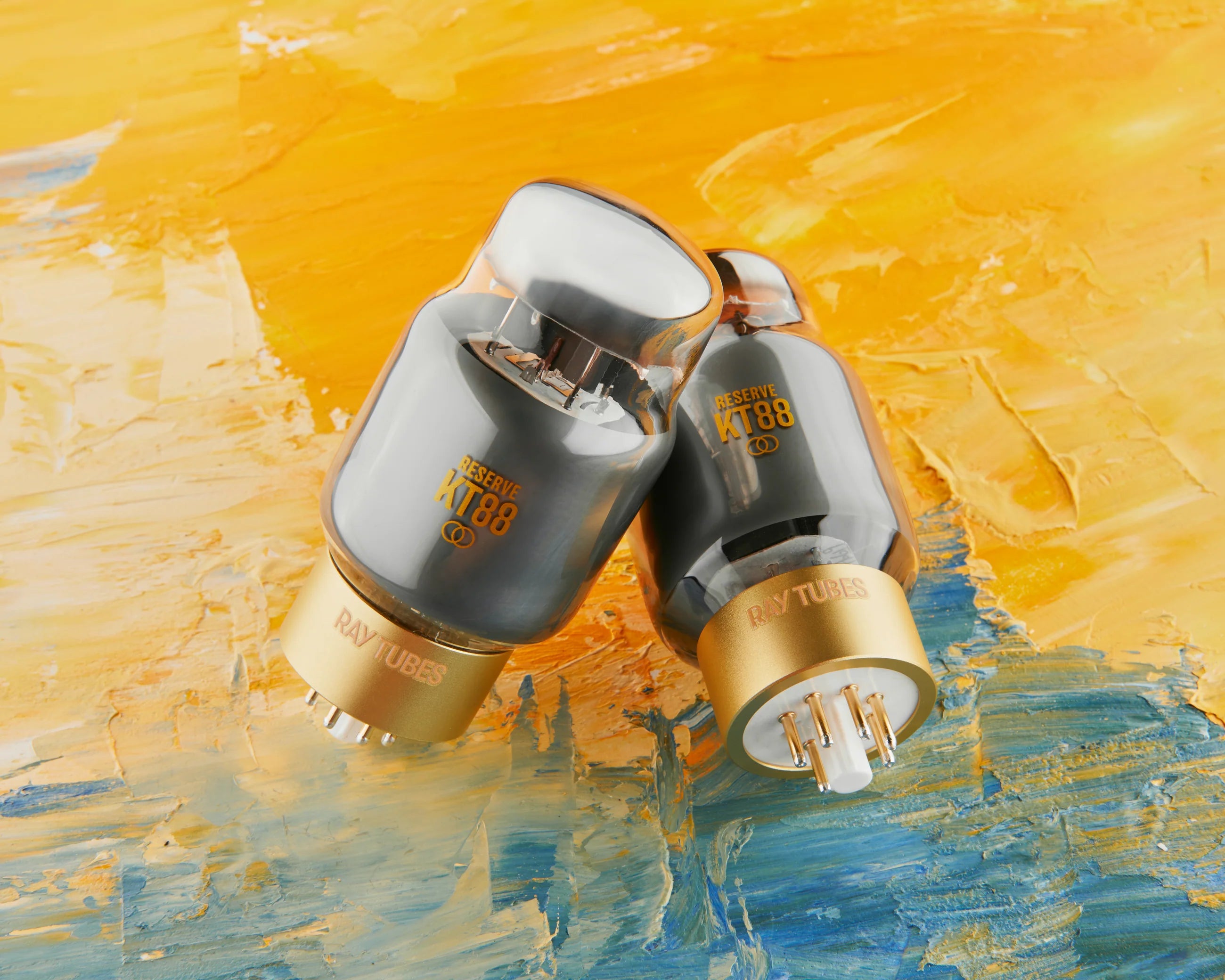

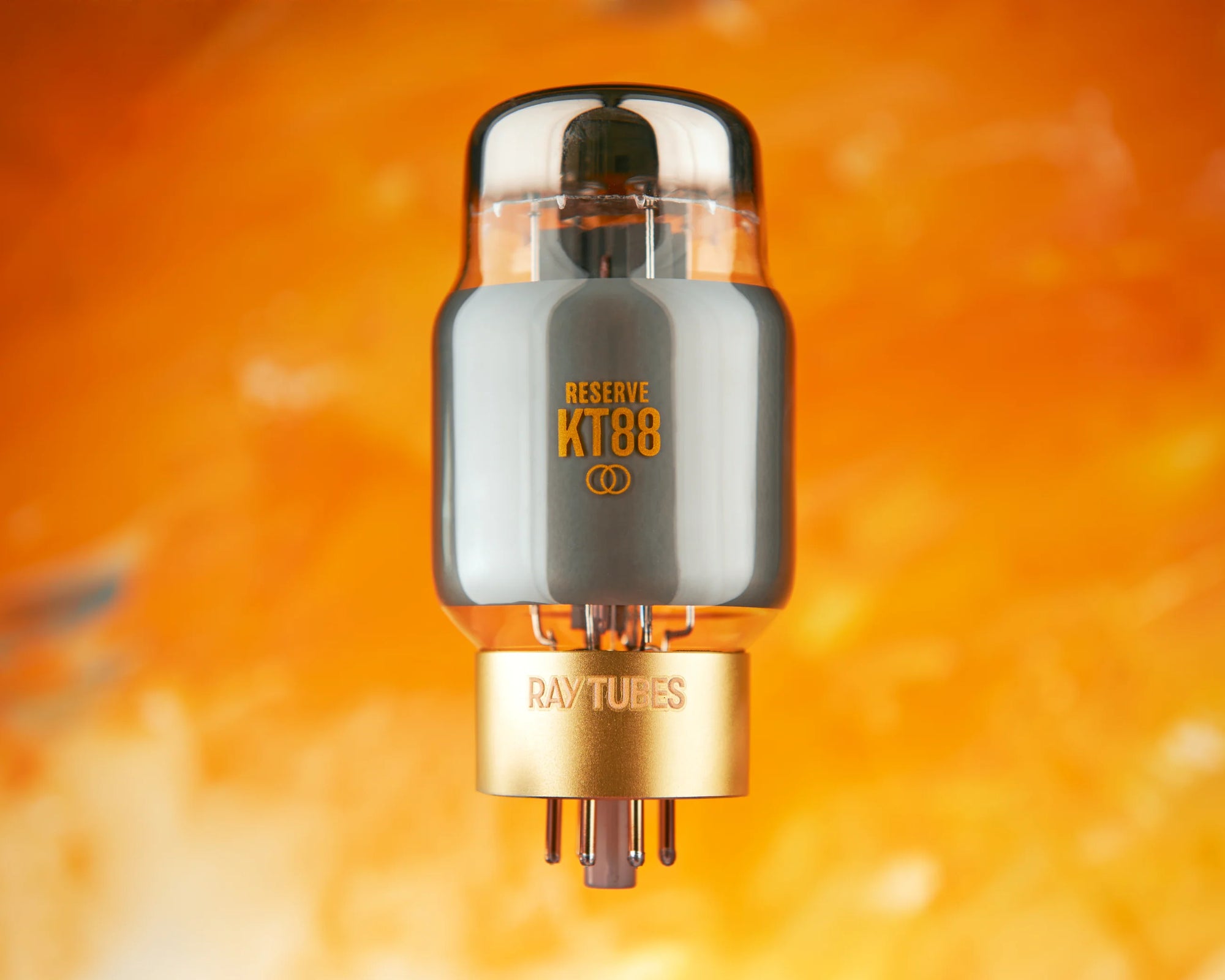

Ray Tubes RESERVE KT88
Regular price
$529.00
Regular price
DESCRIPTION
The Ray Tubes RESERVE KT88 is a premium high-fidelity power tube engineered for serious audiophile systems. Built with bespoke design elements, gold-plated pins, and monocrystalline carbon Magic Coating, it outperforms both new production and old stock tubes, with fewer than 5 % of production meeting RESERVE standards. This beam tetrode offers powerful dynamics, deep, controlled bass, rich midrange, and clear treble, along with a spacious, well-defined soundstage that excels with dynamic music.
Technical Specifications:

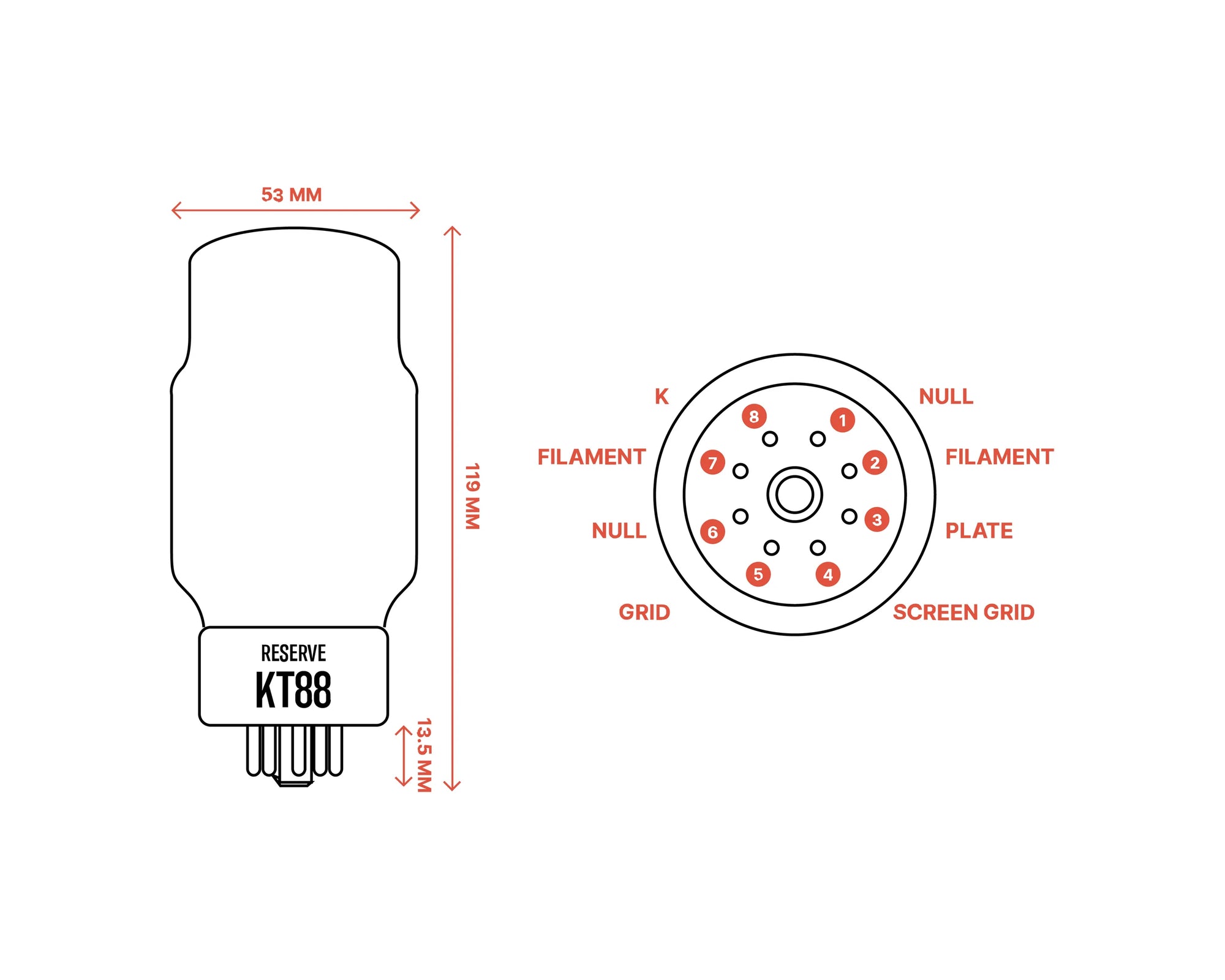

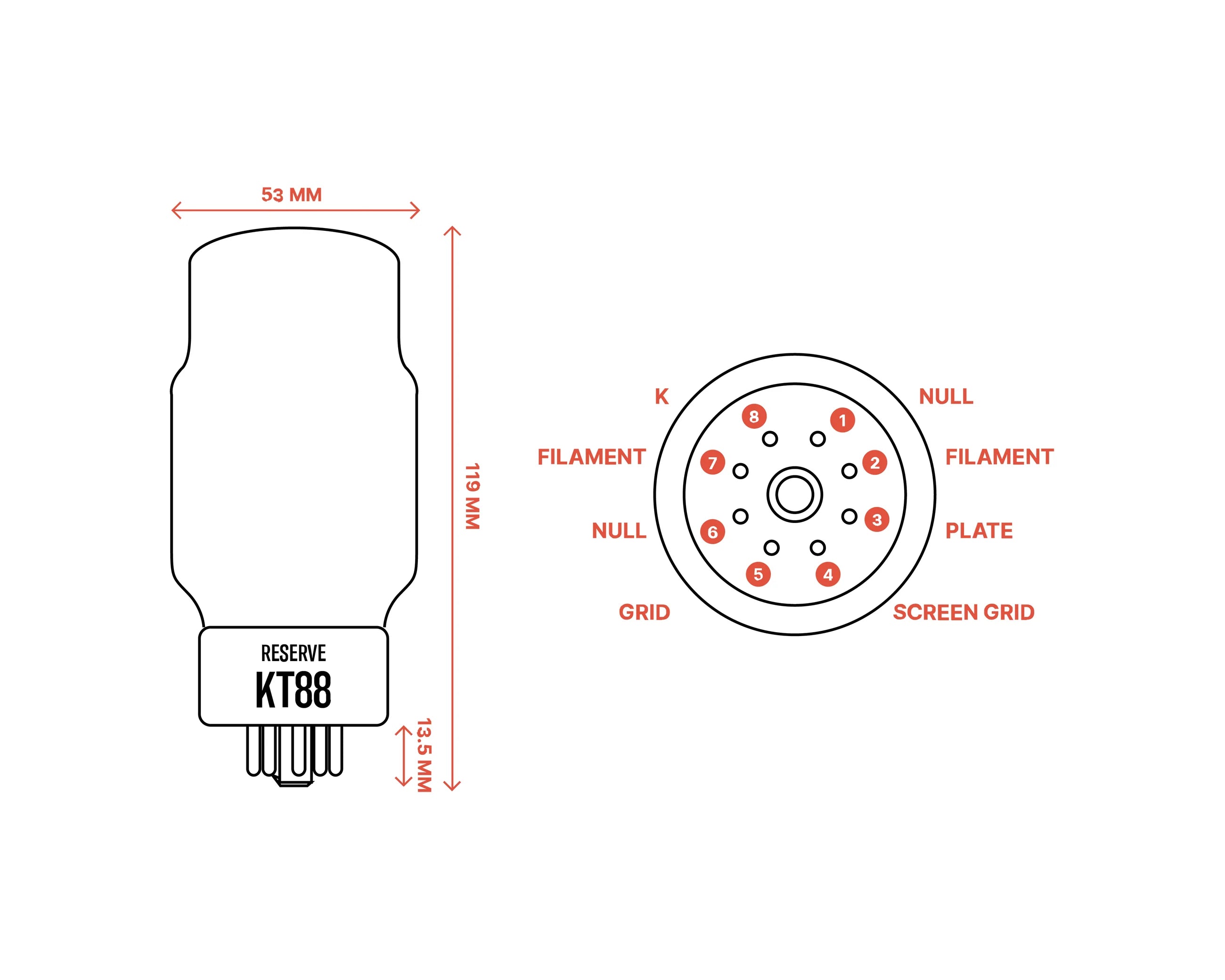

- Tube Type: KT88
- Tube Socket: 8-pin
- Max Anode Dissipation Power: 42 W
- Max Screen Dissipation Power: 8 W
- Max Anode + Screen Dissipation Power: 46 W
- Max Anode Voltage: 800 V
- Max Screen Voltage: 600 V
- Max Grid Voltage: ~200 V
- Max Cathode Current: 230 mA
- Heater Voltage: 6.3 V
- Heater Current: 1.6 A
- Transconductance: 12 mA/V
- Amplification Factor: 8
- Internal Resistance: 12 kΩ (tetrode), 670 Ω (triode)
Backed by the Ray Tubes One Year Warranty
