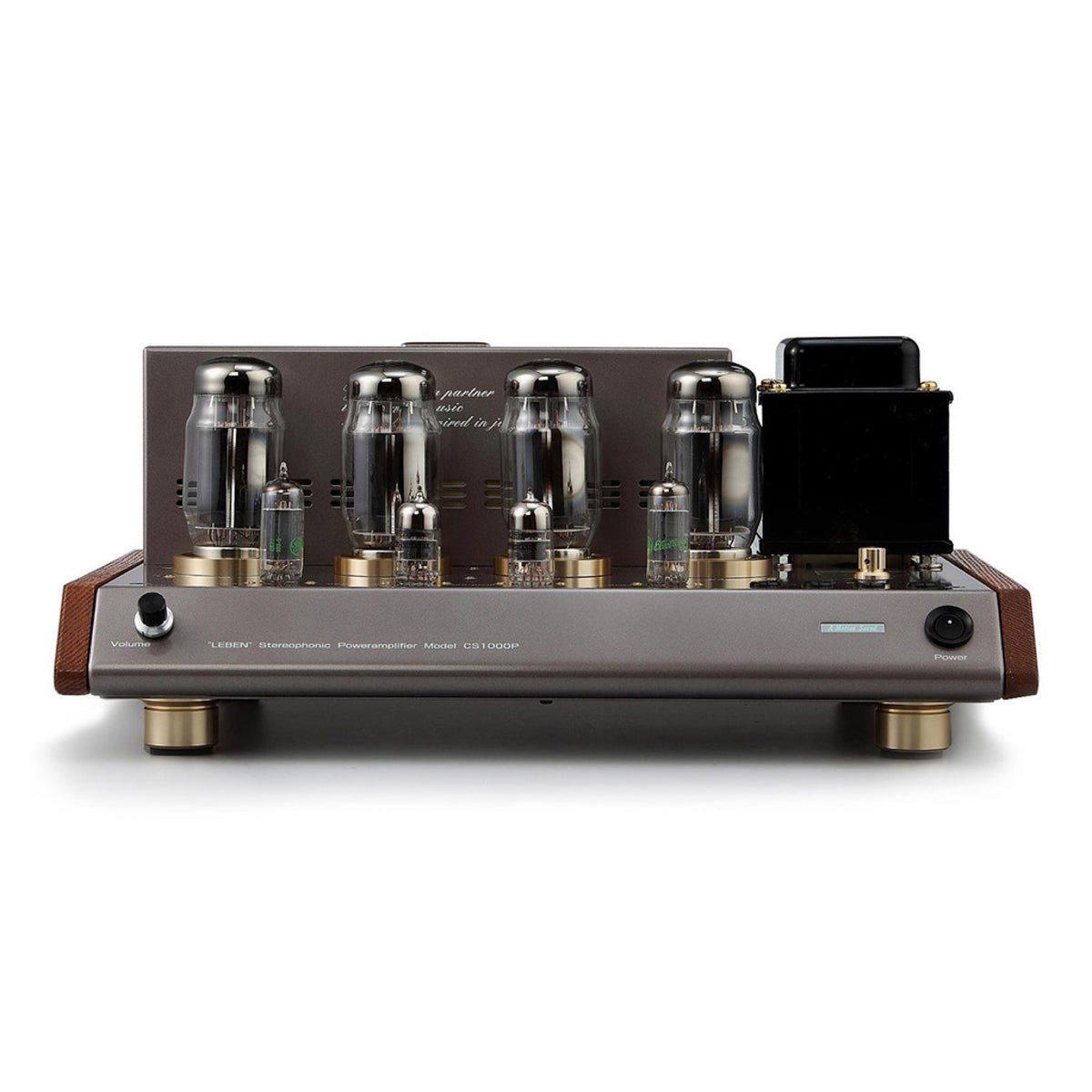

Leben CS-1000P Power Amplifier
DESCRIPTION

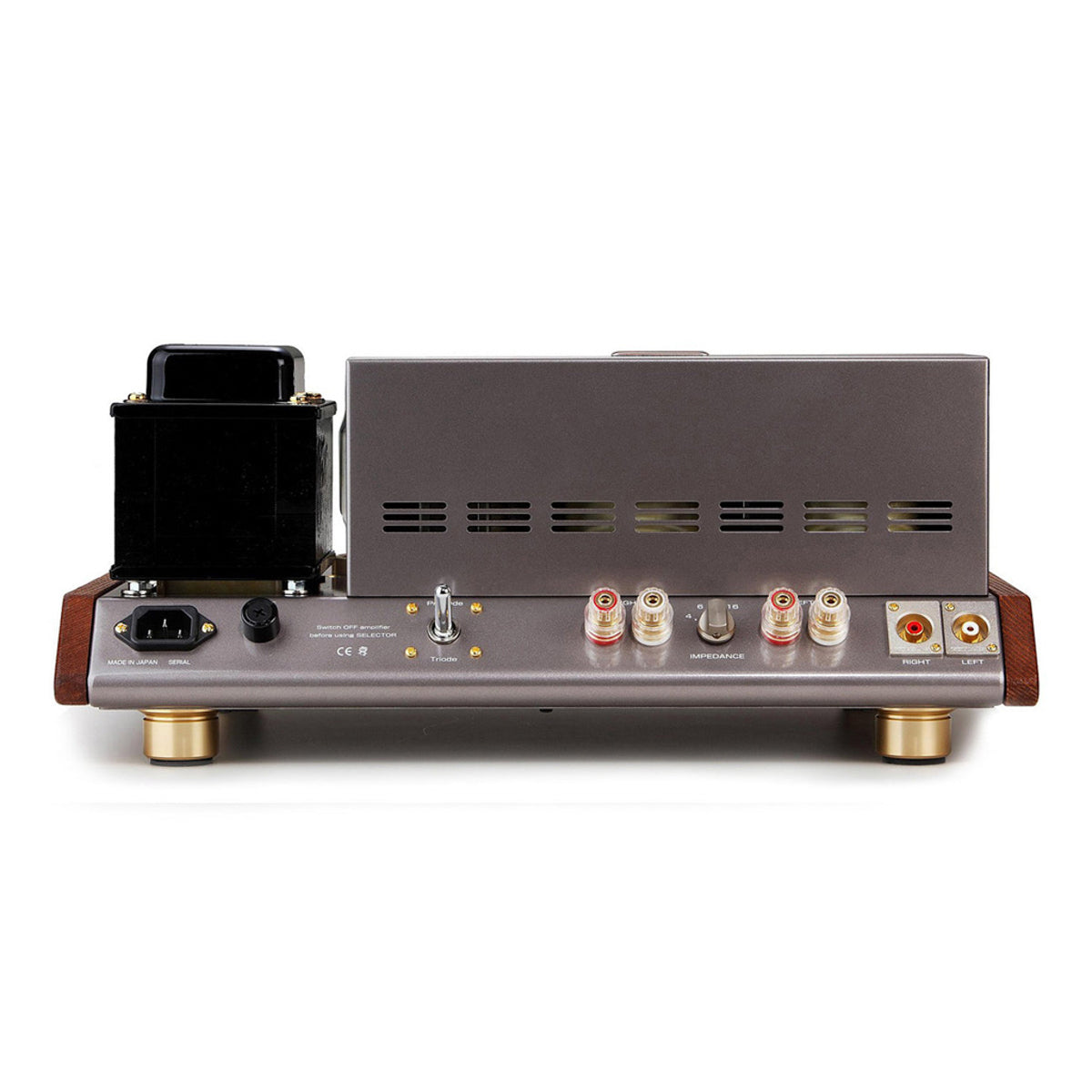

Following on from the success of the CS-660P, Leben have now developed an even more powerful power amplifier, the CS-1000P , with up to 100W per channel. With a similar styling as before, this new amplifier can operate in either Pentode or Triode mode via a switch on the back of the amplifier.
High power output tube KT120(Super KT88)
100W/ch(1KHz) at Pentode circuit (70W/ch at Triode). Pentode/Triode selector switch.

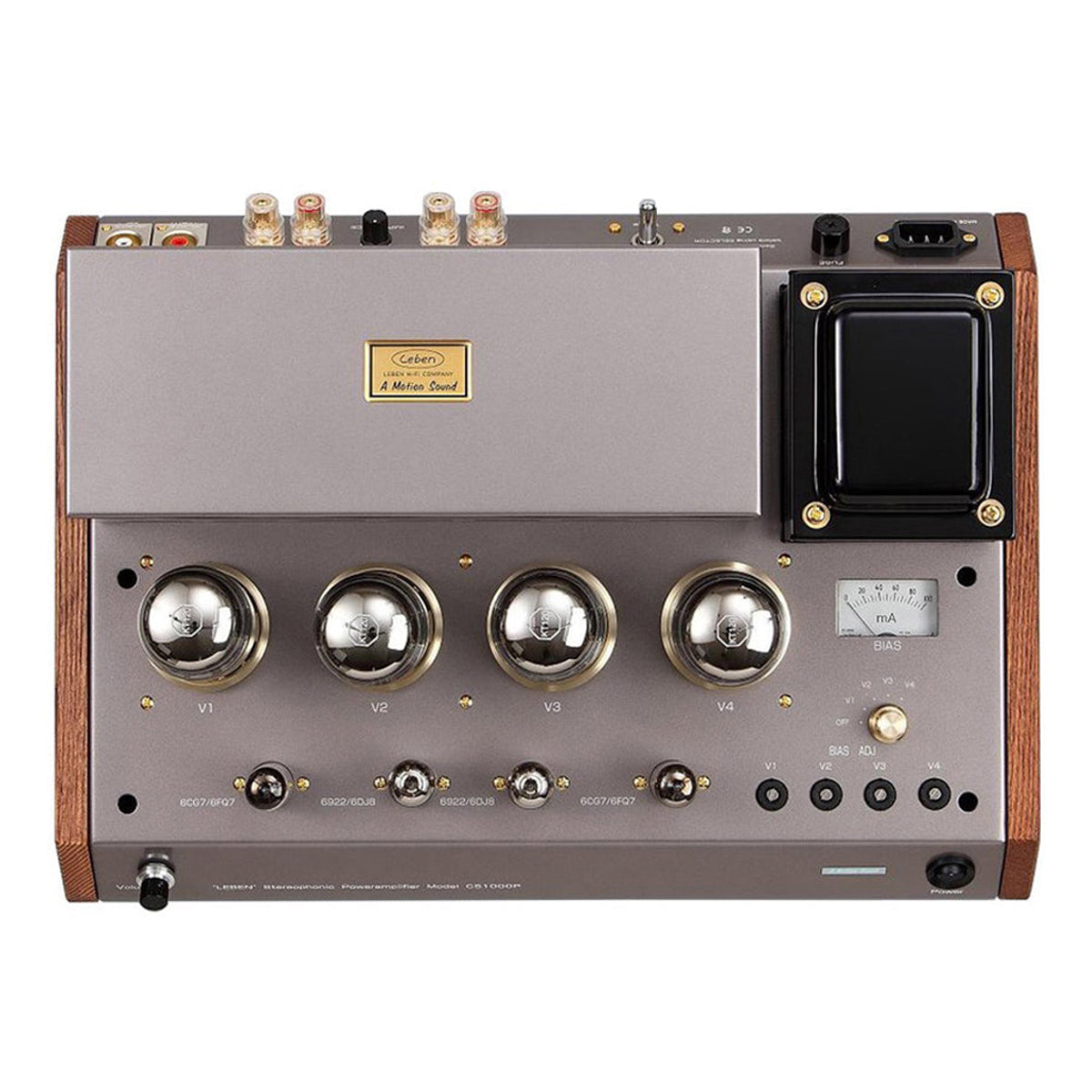

Bias adjustment with a Cathode-direct meter
Several type of output tubes are applicable by adjusting the cathodal electric current.
Newly developed Orient-core output transformer
A minimum loss and a Superior high-frequency response.
Flat and wide Frequency Response
A wide frequency response from 10Hz to 150KHz(-0dB) caters for digital audio formats such as SACD/HDCD.
High rigidity solid aluminum insulators
Other Features
– Super-high sensitivity bias meter made by a long-established manufacturer.
– High-grade Metal glaze resistors of below 1% error margin.
– High-grade 41-steps Detent Volume of ALPS.
Technical Specifications
- Tubes Compliment: KT120 x 4, 6922/6DJ8(ECC88) x 2, 6CG7/6FQ7 x 2
- Output Power: 100W x 2 at 1KHz
- Frequency Response: 10Hz – 150KHz. (-3dB)
- Input Sensitivity: 0.4V at 50W
- Input Impedance: 100K Ohms.
- Output Impedance: 4/6/8/16 Ohms (Selectable)
- Weight: 23.5 Kgs.
- Dimensions: 455 (W) X 200 (H) X 335 (D) mm
- Attachment: Detachable AC Power Cable x 1
