Leben CS-300XO Integrated Amplifier

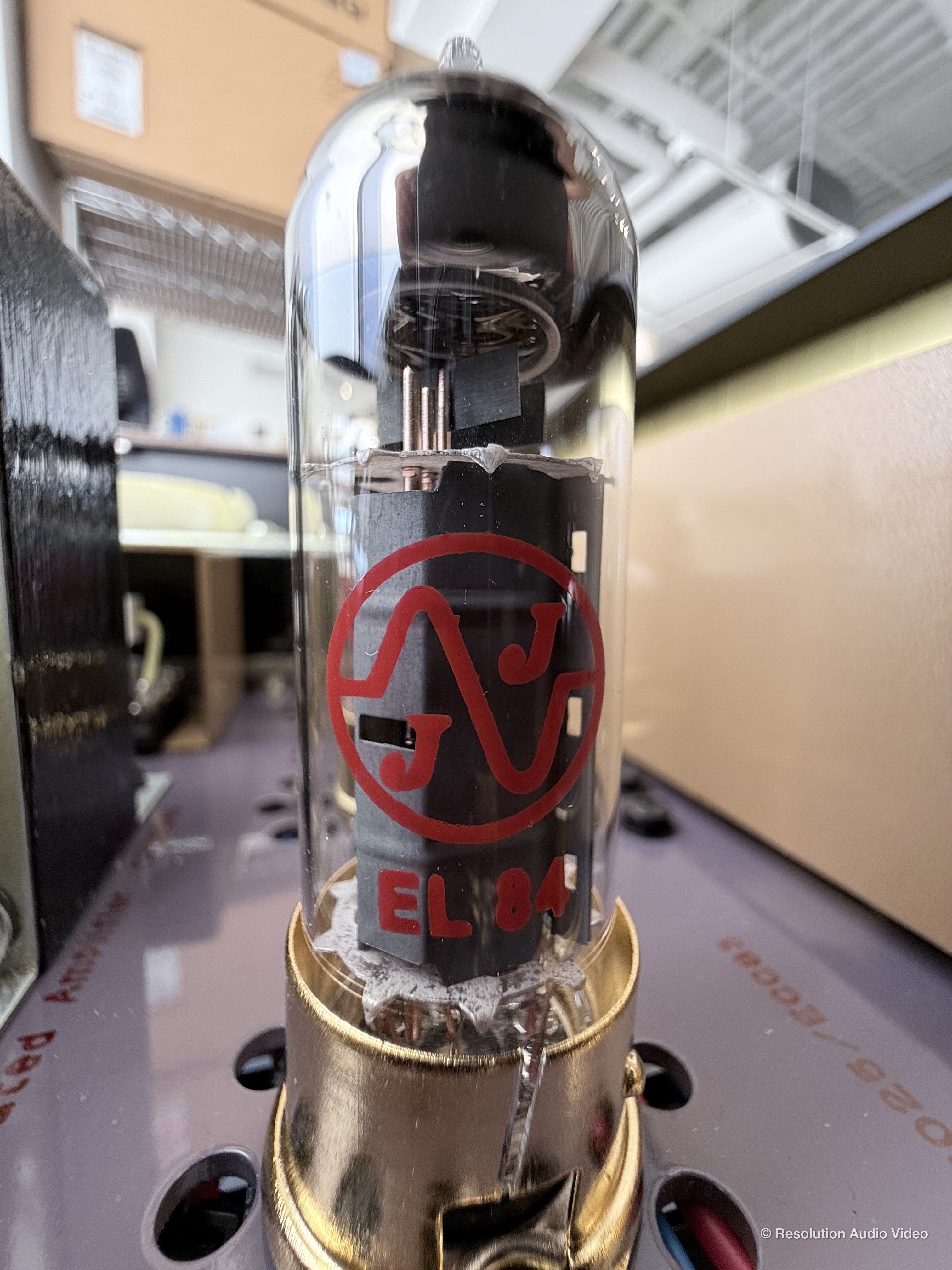

We consider Leben amplifiers to be heirloom pieces of hi-fi, built to last for generations. The new Leben CS-300XO is an evolution of the Leben 300 line... giving you more of that Leben sound that you love. It is equipped with JJ EL84 output tubes, which are well-known amongst audiophiles for their high sound quality against their small size. Their high input sensitivity allows for a simple circuit design, keeping distortion exceptionally low and your signal sounding exceptionally good.

Precision Components:

• RESISTORS: Precision industrial grade +/-1%
• Upgraded paper-in-oil coupling caps
• Upgraded low resonance footers.
• FIRST STAGE BYPASS CONDENSER: An ultimate audio condenser "OS Condenser" developed by SANYO
• LAST STAGE BYPASS CONDENSER: Fine-Gold by NICHICON
• JOINT CONDENSER: "Metalized Polypropylene Condenser" with mesh-shielding.
• NF OVERSHOOT PREVENTION CONDENSER: Ceramic condenser
• CATHODE RESISTOR: 4W type (Instead of 3W type)

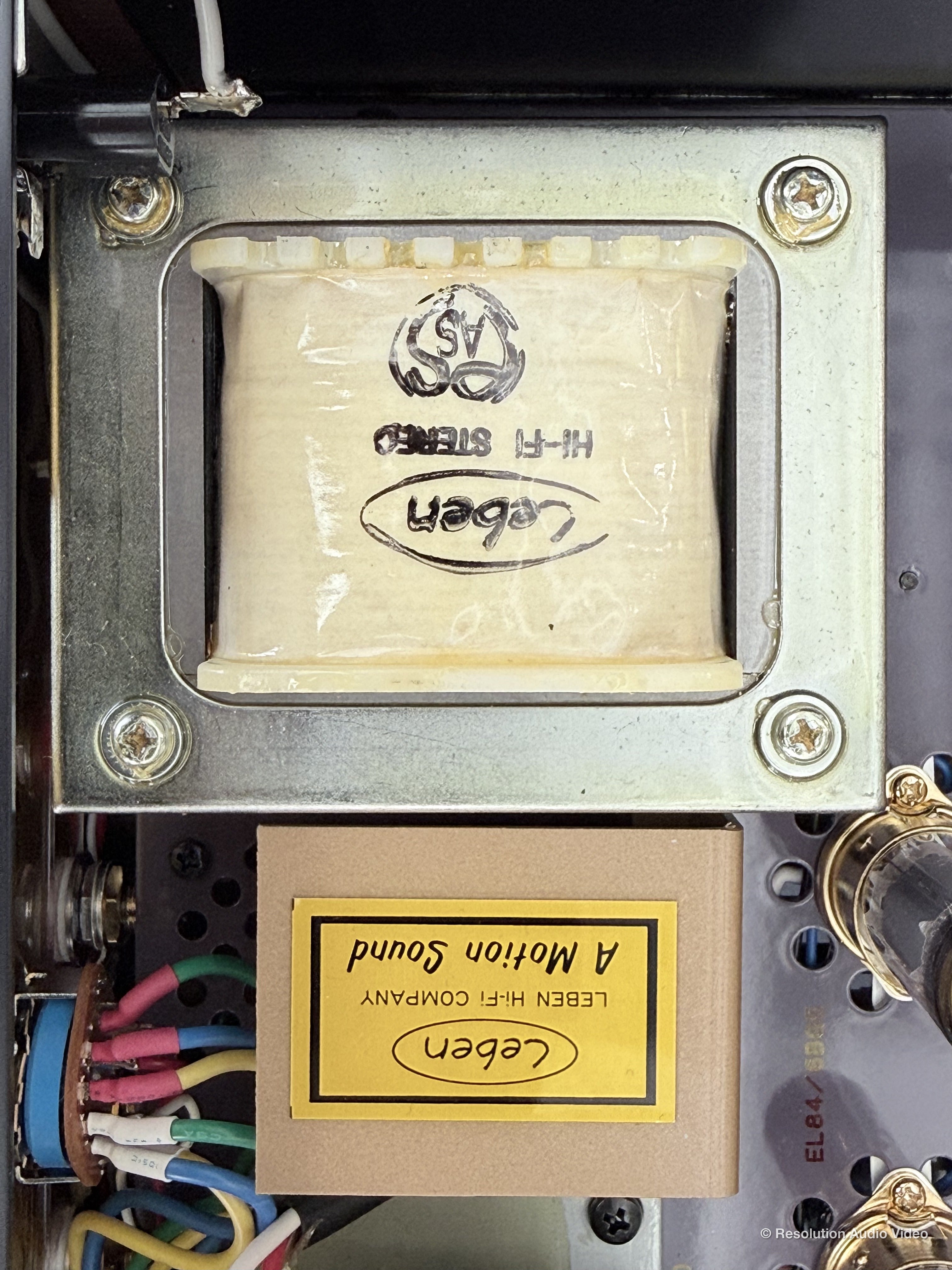

• OUTPUT TRANSFORMER: Newly developed transformer with wider range for high frequency.
• WBT type binding post.

Specifications:

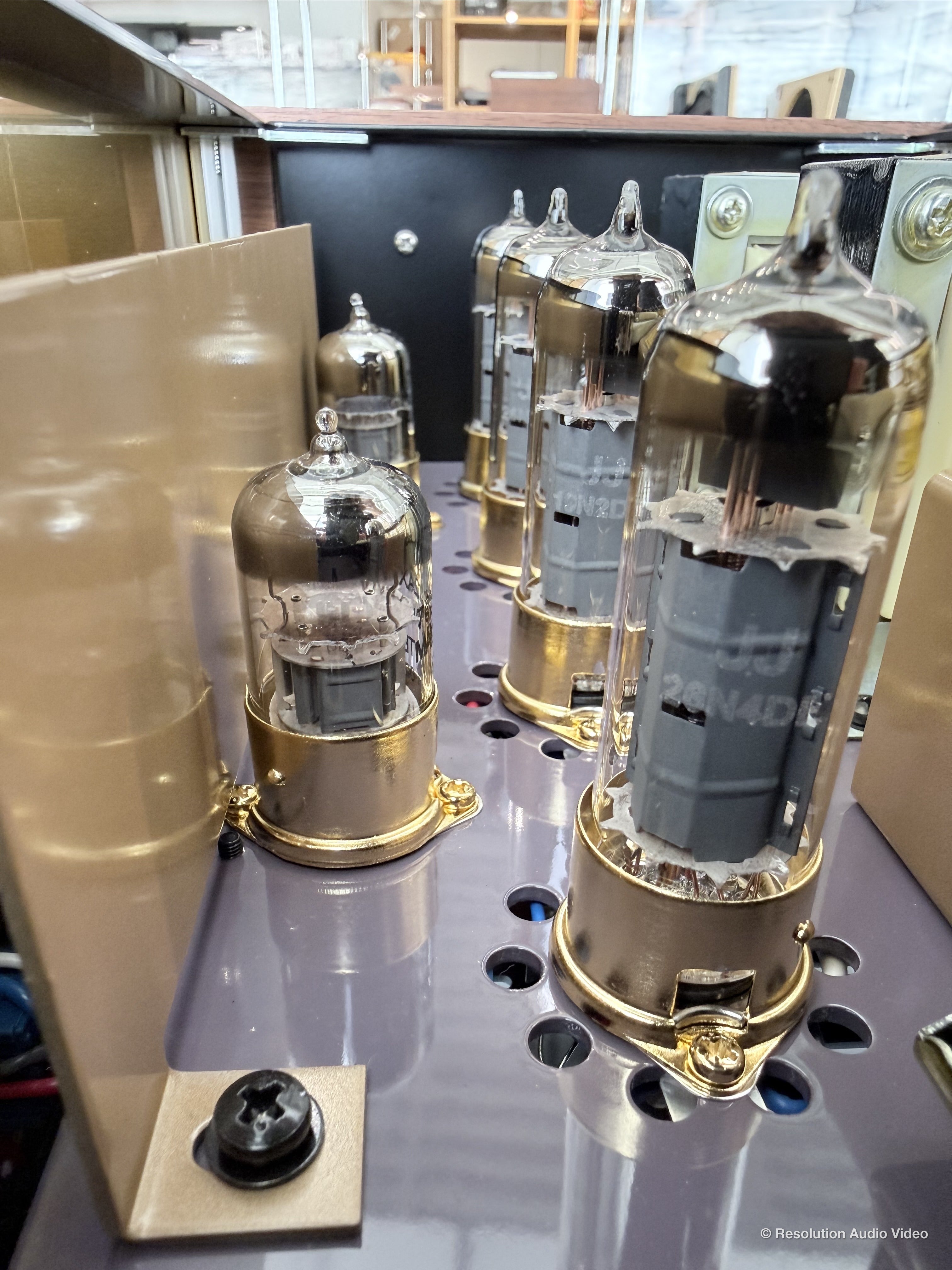

• TUBES EQUIPPED: EL84 (JJ) x4, 12AX7A (Sovtek) x2
• OUTPUT POWER: 15W x2 (more like 10W)
• FREQUENCY RESPONSE: 15Hz - 100KHz (-2 dB)
• DISTORTION: 0.7% (10W)
• INPUT SENSITIVITY: 600mV
• INPUT IMPEDANCE: 100K Ohms
• OUTPUT IMPEDANCE: 4/6/8 Ohms (Selectable)
• POWER CONSUMPTION: 82W
• WEIGHT: 10.5kgs (24lbs)
• DIMENSIONS: 360mm (W) x 270mm (D) x 140mm (H) | 14" x 10.5" x 5.5"
• ATTACHMENT: Detachable AC Power Cable
