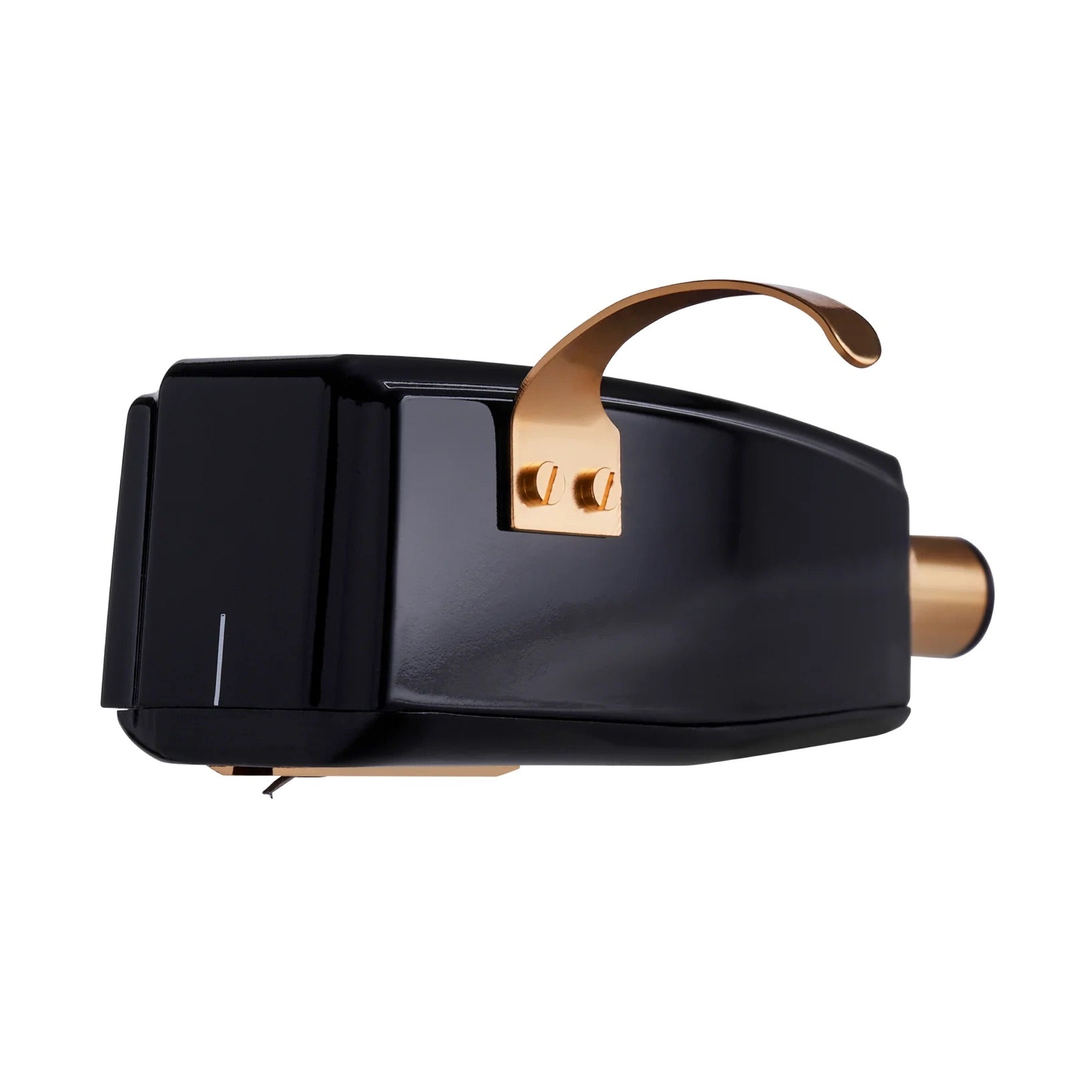

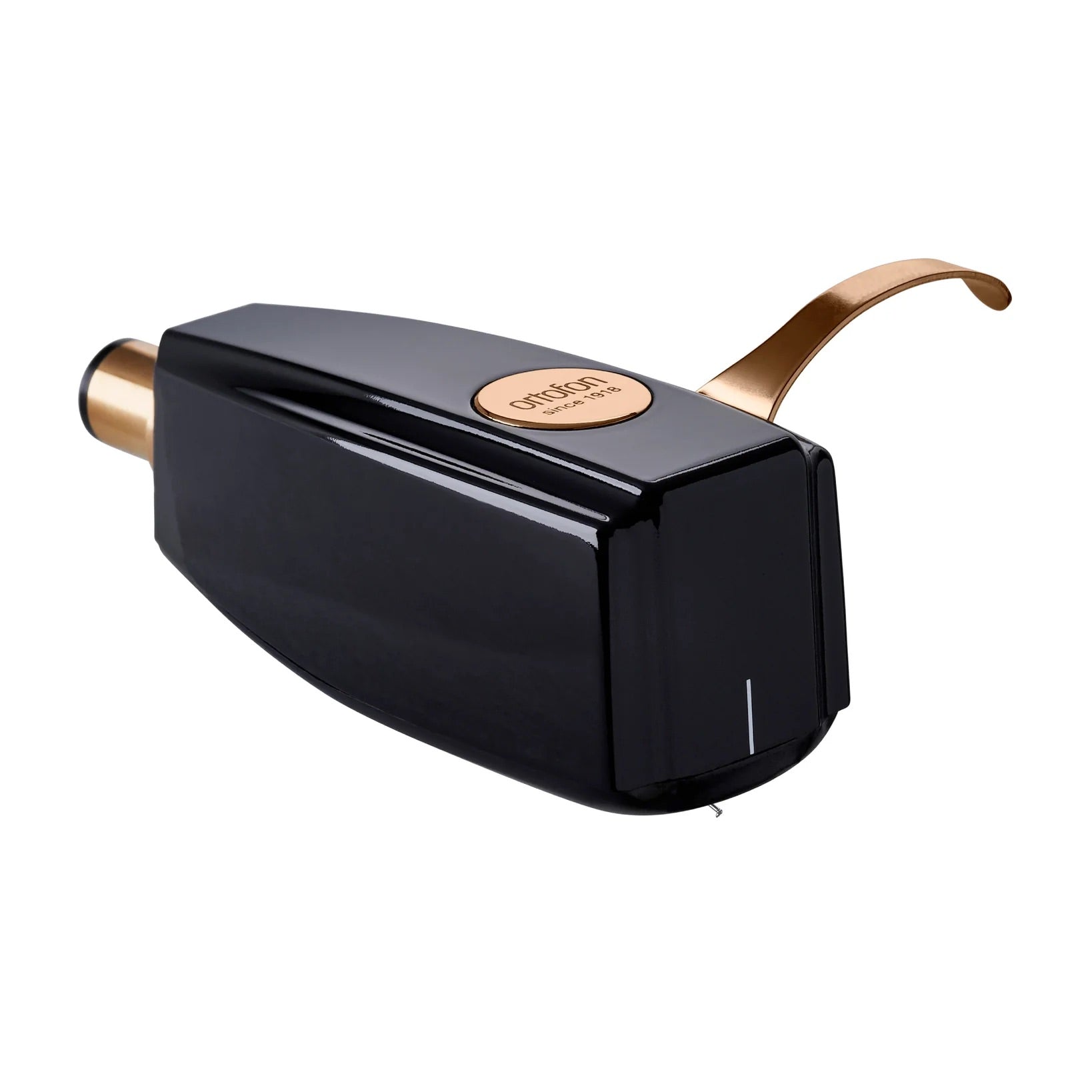

Ortofon SPU Royal G MKII Phono Cartridge
Regular price
$2,819.00
Regular price
DESCRIPTION
The SPU Royal G MkII provides a playback experience that embodies the essence of analog with generous refinements which bring the legendary SPU cartridges into the realm of unrivaled perfection.
A purely exquisite listening experience
The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
Electrum coils, consisting of a gold and silver alloy, provide uncolored and precise transmission of armature movements, while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
Technical Specifications
- Channel balance: 1.0 dB (at 1KHz)
- Output Voltage: 0.2 mV (at 1KHz, 5cm/sec.)
- Channel Separation: 25 dB (at 1KHz)
- Frequency response: 20 - 20‘000Hz (1.5/-0 dB)
- Tracking ability at 315 Hz: 60 µm
- Compliance, dynamic, lateral: 8µm/mN
- Cantilever material: Aluminum
- Stylus type: Nude Ortofon Replicant 100
- Stylus tip radius: r/R 5/100 µm
- Tracking force range: 2.5-3.5 g (25-35 mN)
- Tracking force, recommended: 3.0 g (30 mN)
- Tracking angle:
- Internal impedance, DC resistance: 7 ohm
- Cartridge body material: Ground wood and resin composite
- Cartridge color: Shiny black
- Cartridge Weight: 30g
