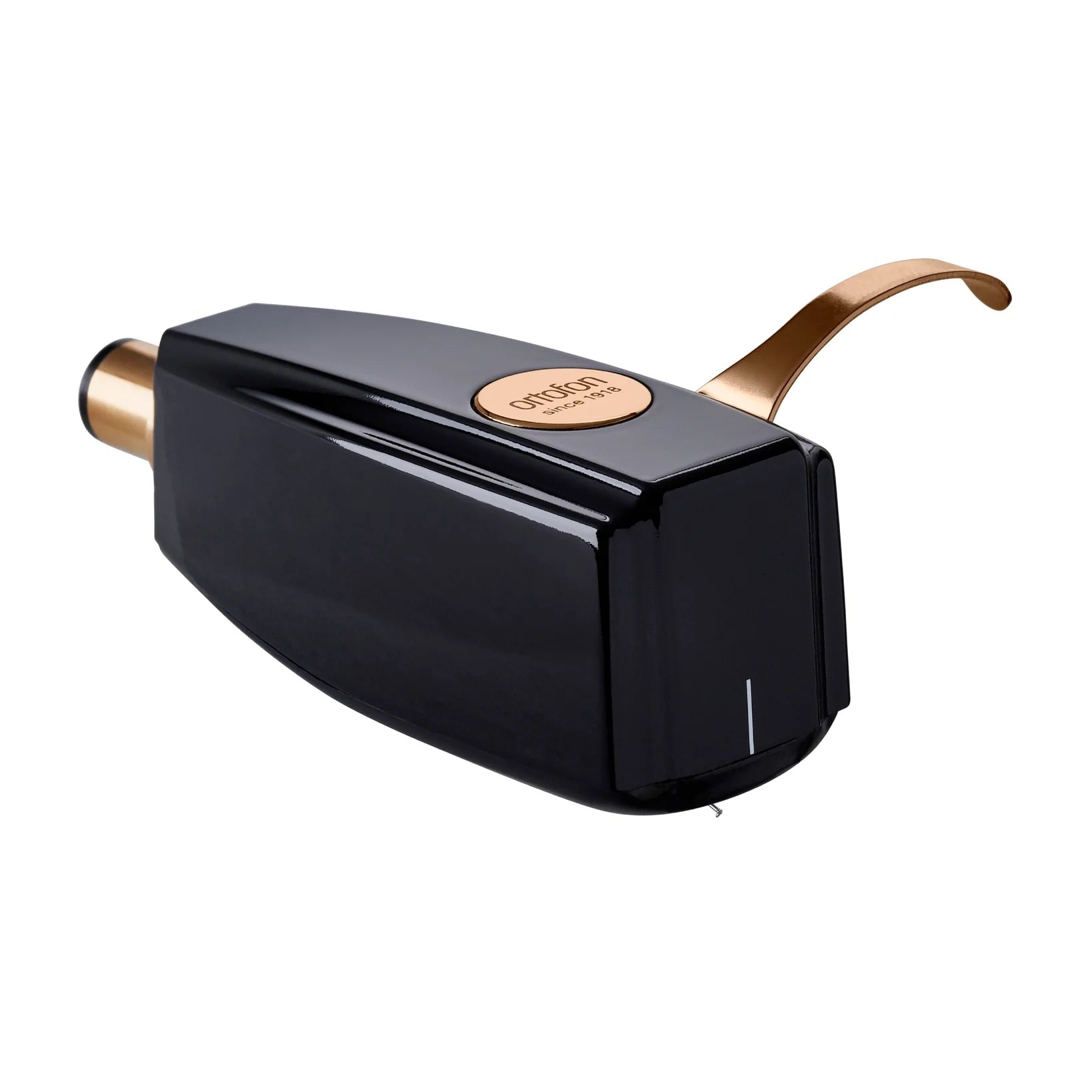

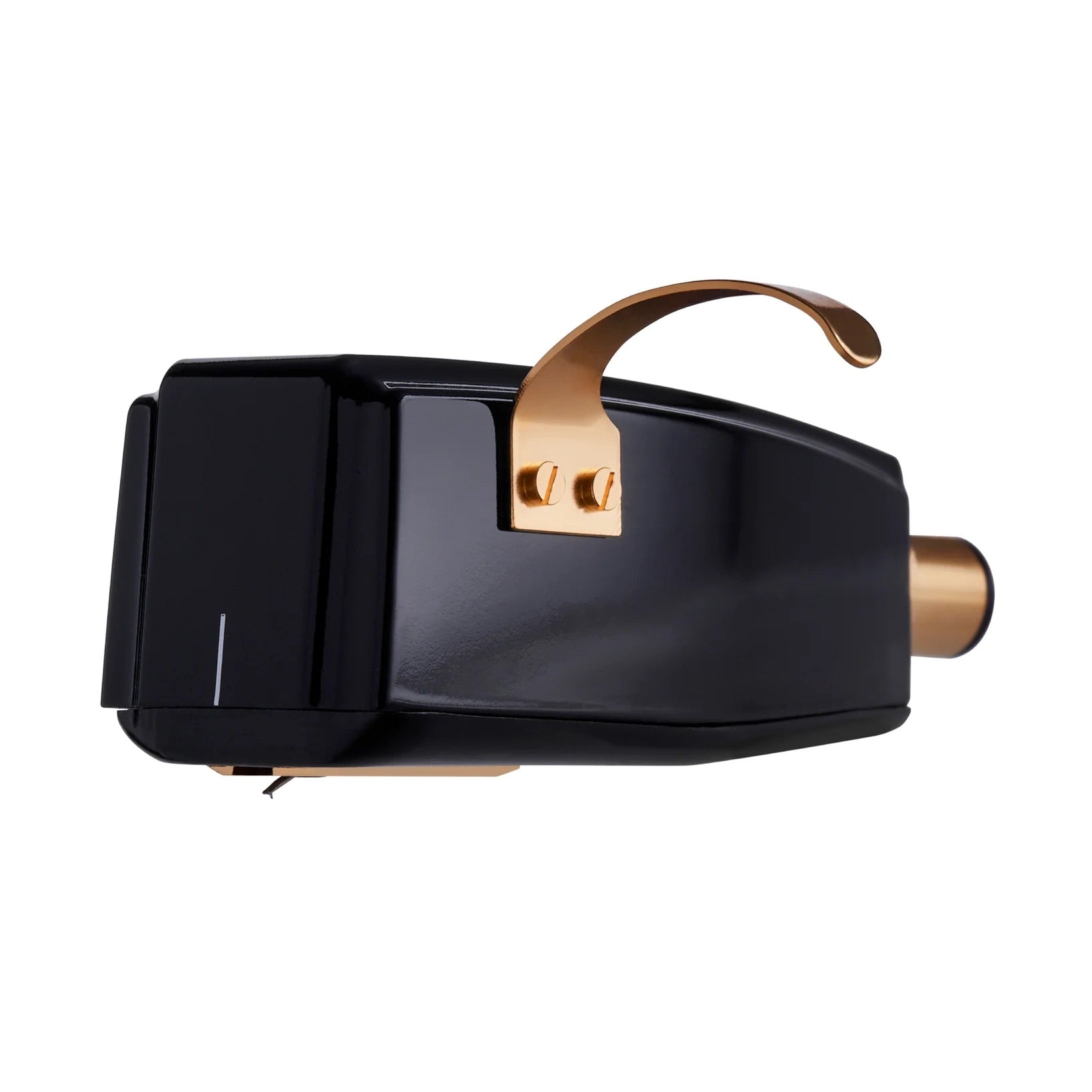

Ortofon SPU Synergy G Phono Cartridge
DESCRIPTION
The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.
For optimum compatibility and sonic purity
The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.
While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.
Technical Specifications
- Channel balance: 1.5 dB (at 1KHz)
- Output Voltage: 0.5 mV (at 1KHz, 5cm/sec.)
- Channel Separation: 23 dB (at 1KHz)
- Frequency response: 20 - 20‘000Hz (2 dB)
- Tracking ability at 315 Hz: 60 µm
- Compliance, dynamic, lateral: 8µm/mN
- Stylus type: Nude Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 3.0-4.0 g (30-40 mN)
- Tracking force, recommended: 3.5 g (35 mN)
- Tracking angle:
- Internal impedance, DC resistance: 2 ohm
- Recommended load impedance: 10 - 50 ohm
-
Coil wire material:
- Cartridge body material: Ground wood and resin composite
- Cartridge color: Shiny black
- Cartridge Weight: 28g
