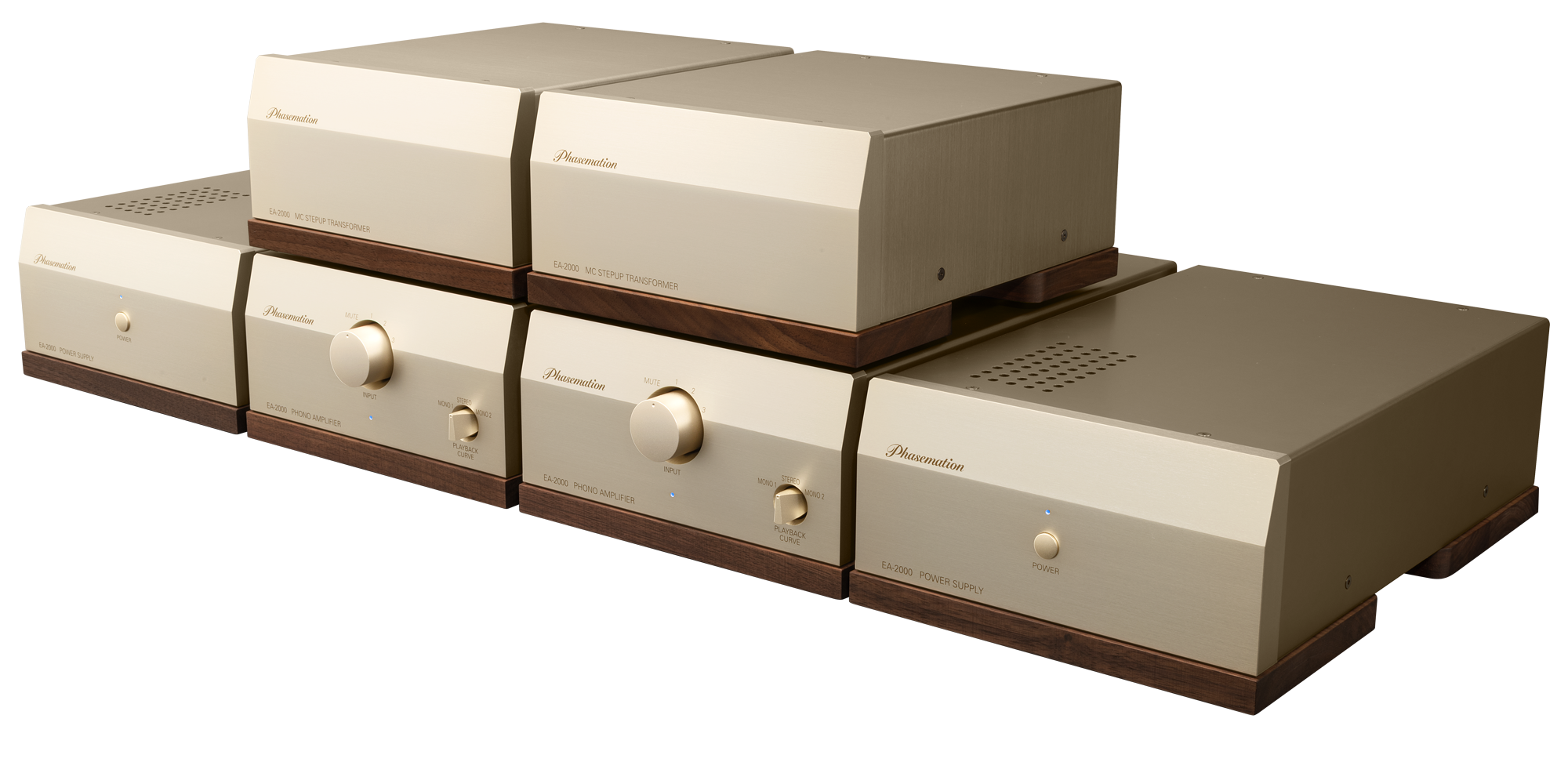

Phasemation EA-2000 Tube Phono Amplifier
DESCRIPTION
The EA-2000 is Phasemation's statement phono amplifier — a completely monaural, non-feedback LCR design spread across six separate chassis: independent left and right step-up transformers, EQ amplifiers, and power supplies. Each equalizer stage runs an ECC-803S SRPP circuit paired with a 6922 cathode-follower output, all non-feedback, feeding a hand-wound LCR equalization network that avoids the phase and noise penalties of active RIAA correction. Three curve settings (RIAA/Mono 1/Mono 2) support both stereo and vintage mono pressings.
The power supply uses 5U4G rectifier tubes and dual R-core transformers per channel for a dead-quiet noise floor, and the whole system rides on TAOC insulators with a walnut base plinth. Winner of the Stereo Sound Grand Prix and HiFi Review (Hong Kong) Product of the Year, both in 2020/2021.
Key Features:

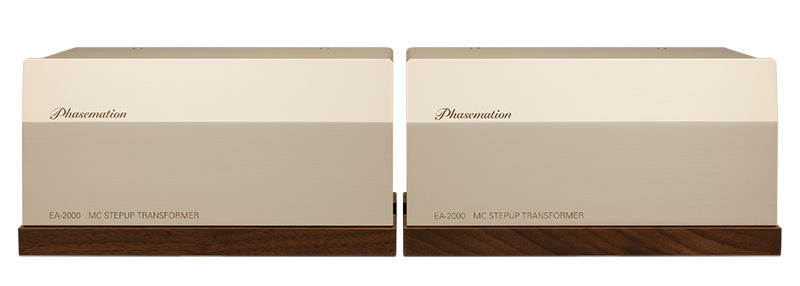

- Fully monaural 6-chassis design: dual transformers, EQ amps, and power supplies
- Non-feedback LCR equalization with ECC-803S / 6922 tube complement

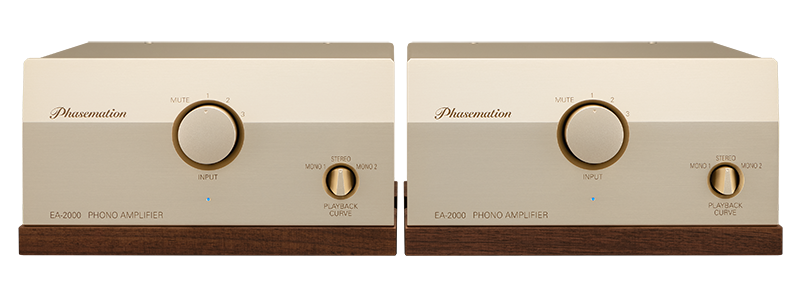

- Three equalization curves: RIAA, Mono 1 (Decca), Mono 2 (Columbia)

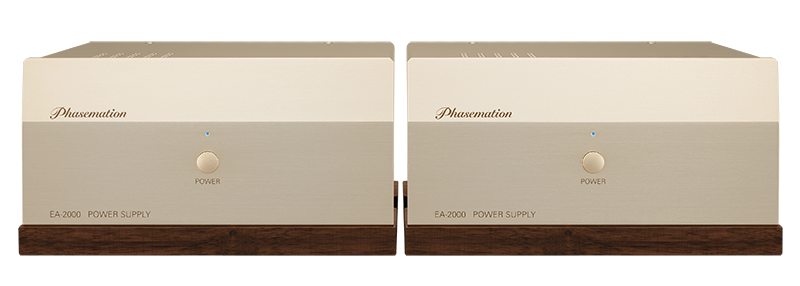

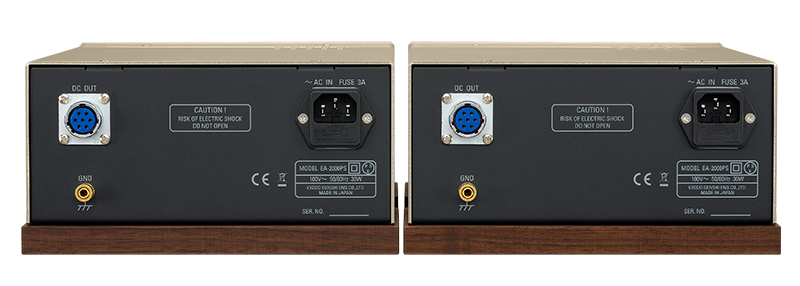

- Dual 5U4G-tube rectified power supplies, magnetically shielded

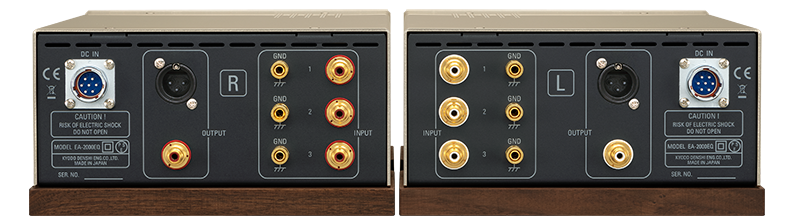

- WBT RCA and rhodium-plated Furutech XLR terminals
- Stereo Sound Grand Prix 2020; HiFi Review Product of the Year 2021
Specifications:
| Input Sensitivity (MM/MC) | 2mV / 0.1mV |
| Gain (MM/MC) | 40dB / 66dB |
| Input Impedance (MM/MC) | ≤47kΩ / 1.5–40Ω |
| Input S/N Ratio (MM/MC) | –120dBV / –140dBV |
| Rated Output | 200mV (1kHz) |
| RIAA Accuracy | ±0.5dB (20Hz–20kHz) |
| Power Consumption | 35W per channel (100VAC) |
| Dimensions (T/EQ/PS) | 214x118x265 / 214x118x368 / 214x118x352mm (x2 each) |
| Weight | Transformer 4.5kg, Amp 6.1kg, PSU 7.8kg (x2) |
